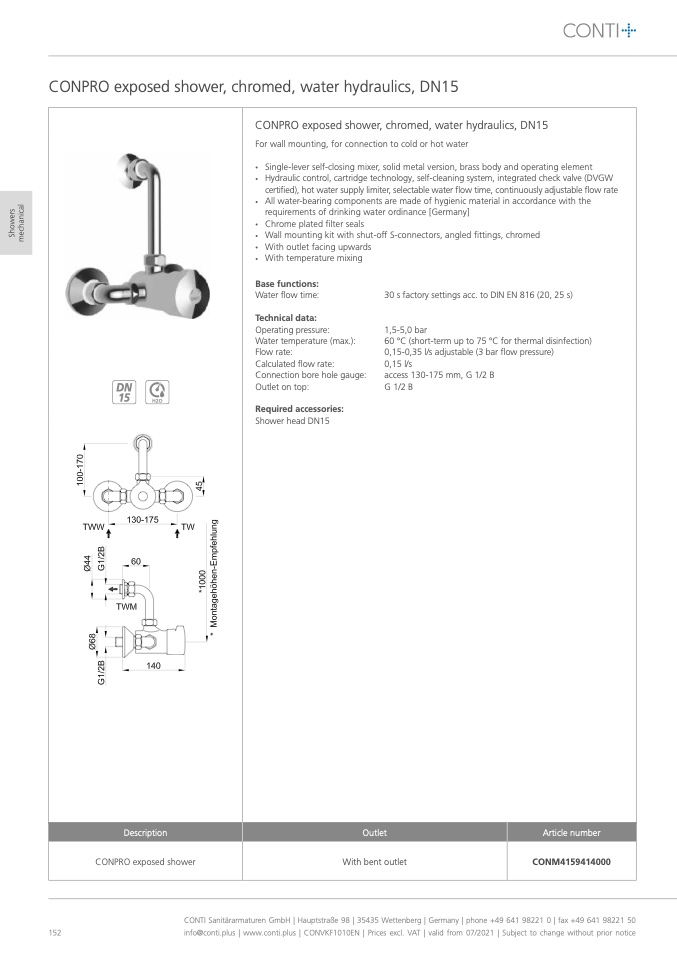

CONPRO exposed shower, chromed, water hydraulics, DN15

For wall mounting, for connection to cold or hot water

•

Single-lever self-closing mixer, solid metal version, brass body and operating element

•

Hydraulic control, cartridge technology, self-cleaning system, integrated check valve (DVGW

certified), hot water supply limiter, selectable water flow time, continuously adjustable flow rate

•

All water-bearing components are made of hygienic material in accordance with the

requirements of drinking water ordinance [Germany]

•

Chrome plated filter seals

•

Wall mounting kit with shut-off S-connectors, angled fittings, chromed

•

With outlet facing upwards

•

With temperature mixing

Base functions:

Water flow time:

Technical data:

Operating pressure:

Water temperature (max.):

Flow rate:

Calculated flow rate:

Connection bore hole gauge:

Outlet on top:

Required accessories:

Shower head DN15

30 s factory settings acc. to DIN EN 816 (20, 25 s)

1,5-5,0 bar

60 °C (short-term up to 75 °C for thermal disinfection)

0,15-0,35 l/s adjustable (3 bar flow pressure)

0,15 l/s

access 130-175 mm, G 1/2 B

G 1/2 B

Description

Outlet

Article number

CONPRO exposed shower

With bent outlet

CONM4159414000

CONPRO exposed shower, chromed, water hydraulics, DN15
