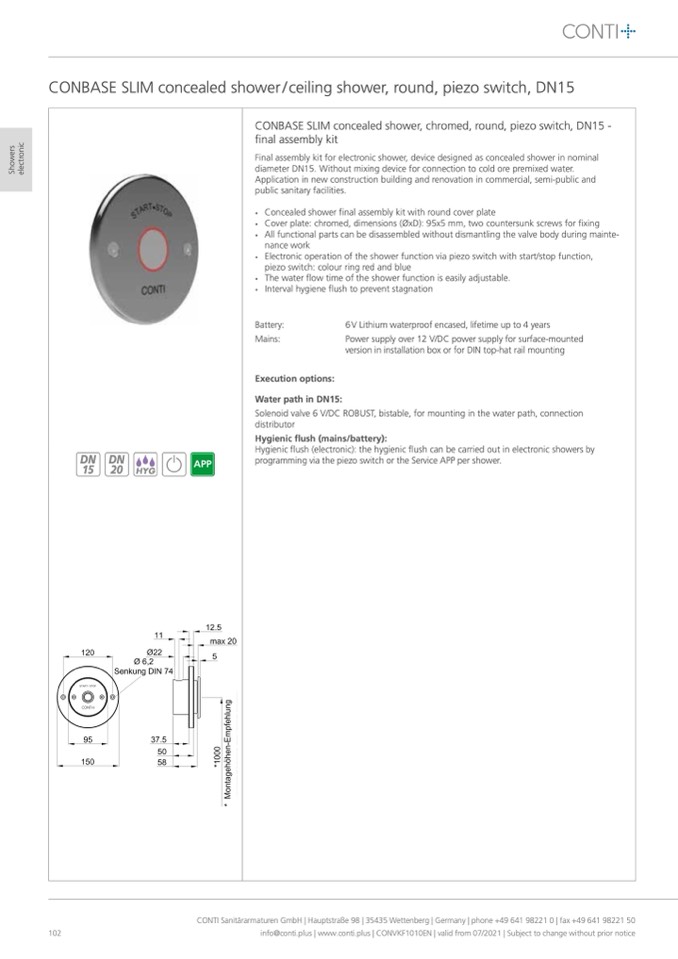

CONBASE SLIM concealed shower, chromed, round, piezo switch, DN15 -

final assembly kit

Final assembly kit for electronic shower, device designed as concealed shower in nominal

diameter DN15. Without mixing device for connection to cold ore premixed water.

Application in new construction building and renovation in commercial, semi-public and

public sanitary facilities.

•

Concealed shower final assembly kit with round cover plate

•

Cover plate: chromed, dimensions (ØxD): 95x5 mm, two countersunk screws for fixing

•

All functional parts can be disassembled without dismantling the valve body during mainte-

nance work

•

Electronic operation of the shower function via piezo switch with start/stop function,

piezo switch: colour ring red and blue

•

The water flow time of the shower function is easily adjustable.

•

Interval hygiene flush to prevent stagnation

Battery:

6 V Lithium waterproof encased, lifetime up to 4 years

Mains:

Power supply over 12 V/DC power supply for surface-mounted

version in installation box or for DIN top-hat rail mounting

Execution options:

Water path in DN15:

Solenoid valve 6 V/DC ROBUST, bistable, for mounting in the water path, connection

distributor

Hygienic flush (mains/battery):

Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by

programming via the piezo switch or the Service APP per shower.

CONBASE SLIM concealed shower/ceiling shower, round, piezo switch, DN15

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

102

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
