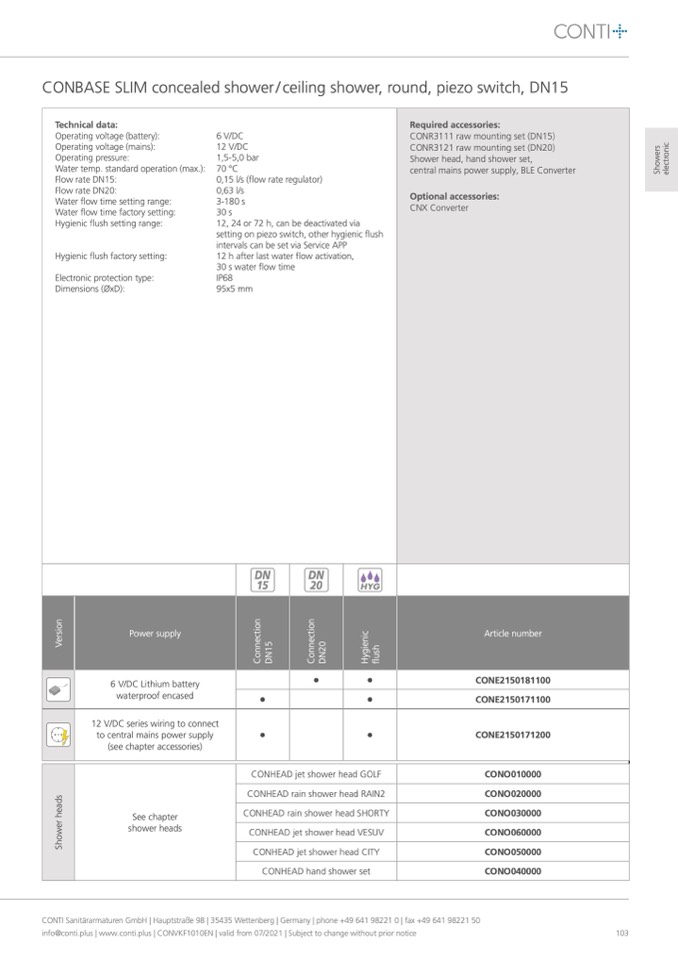

CONBASE SLIM concealed shower/ceiling shower, round, piezo switch, DN15

Technical data:

Operating voltage (battery):

Operating voltage (mains):

Operating pressure:

Water temp. standard operation (max.):

Flow rate DN15:

Flow rate DN20:

Water flow time setting range:

Water flow time factory setting:

Hygienic flush setting range:

Hygienic flush factory setting:

Electronic protection type:

Dimensions (ØxD):

6 V/DC

12 V/DC

1,5-5,0 bar

70 °C

0,15 l/s (flow rate regulator)

0,63 l/s

3-180 s

30 s

12, 24 or 72 h, can be deactivated via

setting on piezo switch, other hygienic flush

intervals can be set via Service APP

12 h after last water flow activation,

30 s water flow time

IP68

95x5 mm

Required accessories:

CONR3111 raw mounting set (DN15)

CONR3121 raw mounting set (DN20)

Shower head, hand shower set,

central mains power supply, BLE Converter

Optional accessories:

CNX Converter

Power supply

Article number

6 V/DC Lithium battery

waterproof encased

•

•

CONE2150181100

•

•

CONE2150171100

12 V/DC series wiring to connect

to central mains power supply

(see chapter accessories)

•

•

CONE2150171200

See chapter

shower heads

CONHEAD jet shower head GOLF

CONO010000

CONHEAD rain shower head RAIN2

CONO020000

CONHEAD rain shower head SHORTY

CONO030000

CONHEAD jet shower head VESUV

CONO060000

CONHEAD jet shower head CITY

CONO050000

CONHEAD hand shower set

CONO040000
