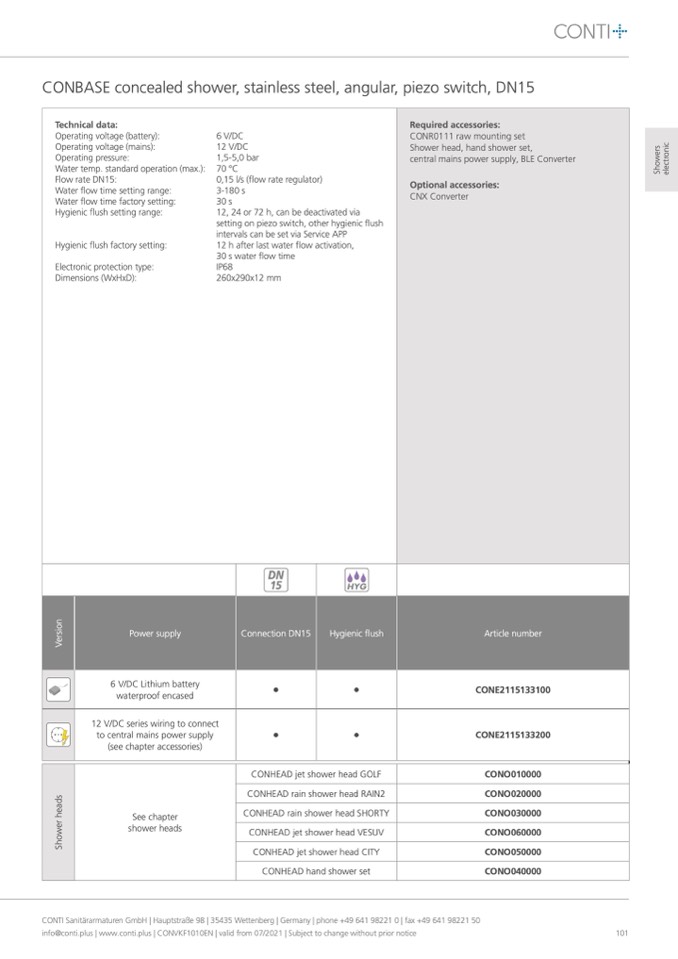

CONBASE concealed shower, stainless steel, angular, piezo switch, DN15

Technical data:

Operating voltage (battery):

Operating voltage (mains):

Operating pressure:

Water temp. standard operation (max.):

Flow rate DN15:

Water flow time setting range:

Water flow time factory setting:

Hygienic flush setting range:

Hygienic flush factory setting:

Electronic protection type:

Dimensions (WxHxD):

6 V/DC

12 V/DC

1,5-5,0 bar

70 °C

0,15 l/s (flow rate regulator)

3-180 s

30 s

12, 24 or 72 h, can be deactivated via

setting on piezo switch, other hygienic flush

intervals can be set via Service APP

12 h after last water flow activation,

30 s water flow time

IP68

260x290x12 mm

Required accessories:

CONR0111 raw mounting set

Shower head, hand shower set,

central mains power supply, BLE Converter

Optional accessories:

CNX Converter

Power supply

Connection DN15

Hygienic flush

Article number

6 V/DC Lithium battery

waterproof encased

•

•

CONE2115133100

12 V/DC series wiring to connect

to central mains power supply

(see chapter accessories)

•

•

CONE2115133200

See chapter

shower heads

CONHEAD jet shower head GOLF

CONO010000

CONHEAD rain shower head RAIN2

CONO020000

CONHEAD rain shower head SHORTY

CONO030000

CONHEAD jet shower head VESUV

CONO060000

CONHEAD jet shower head CITY

CONO050000

CONHEAD hand shower set

CONO040000
