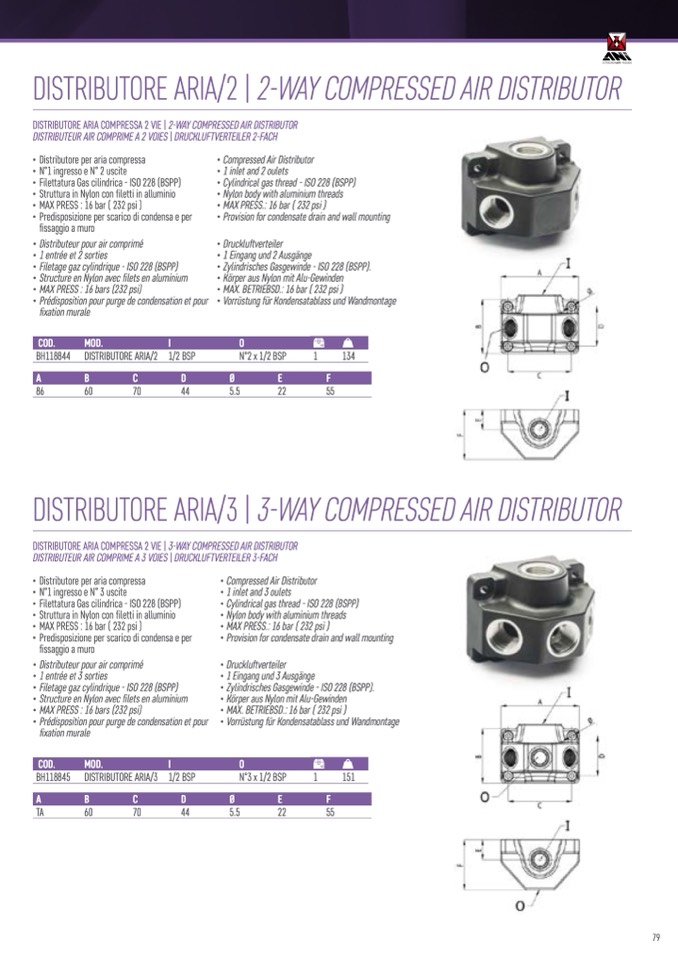

DISTRIBUTORE ARIA/2 | 2-WAY COMPRESSED AIR DISTRIBUTOR

DISTRIBUTORE ARIA COMPRESSA 2 VIE | 2-WAY COMPRESSED AIR DISTRIBUTOR

DISTRIBUTEUR AIR COMPRIME A 2 VOIES | DRUCKLUFTVERTEILER 2-FACH

• Distributore per aria compressa

• N°1 ingresso e N° 2 uscite

• Filettatura Gas cilindrica - ISO 228 (BSPP)

• Struttura in Nylon con filetti in alluminio

• MAX PRESS : 16 bar ( 232 psi )

• Predisposizione per scarico di condensa e per

fissaggio a muro

• Distributeur pour air comprimé

• 1 entrée et 2 sorties

• Filetage gaz cylindrique - ISO 228 (BSPP)

• Structure en Nylon avec filets en aluminium

• MAX PRESS : 16 bars (232 psi)

• Prédisposition pour purge de condensation et pour

fixation murale

BH118844 DISTRIBUTORE ARIA/2 1/2 BSP

86

60

70

44

5.5

22

55

DISTRIBUTORE ARIA/3 | 3-WAY COMPRESSED AIR DISTRIBUTOR

DISTRIBUTORE ARIA COMPRESSA 2 VIE | 3-WAY COMPRESSED AIR DISTRIBUTOR

DISTRIBUTEUR AIR COMPRIME A 3 VOIES | DRUCKLUFTVERTEILER 3-FACH

• Compressed Air Distributor

• 1 inlet and 2 oulets

• Cylindrical gas thread - ISO 228 (BSPP)

• Nylon body with aluminium threads

• MAX PRESS.: 16 bar ( 232 psi )

• Provision for condensate drain and wall mounting

• Druckluftverteiler

• 1 Eingang und 2 Ausgänge

• Zylindrisches Gasgewinde - ISO 228 (BSPP).

• Körper aus Nylon mit Alu-Gewinden

• MAX. BETRIEBSD.: 16 bar ( 232 psi )

• Vorrüstung für Kondensatablass und Wandmontage

COD.

MOD.

I

O

N°2 x 1/2 BSP

1

134

A

B

C

D

Ø

E

F

• Distributore per aria compressa

• N°1 ingresso e N° 3 uscite

• Filettatura Gas cilindrica - ISO 228 (BSPP)

• Struttura in Nylon con filetti in alluminio

• MAX PRESS : 16 bar ( 232 psi )

• Predisposizione per scarico di condensa e per

fissaggio a muro

• Distributeur pour air comprimé

• 1 entrée et 3 sorties

• Filetage gaz cylindrique - ISO 228 (BSPP)

• Structure en Nylon avec filets en aluminium

• MAX PRESS : 16 bars (232 psi)

• Prédisposition pour purge de condensation et pour

fixation murale

BH118845 DISTRIBUTORE ARIA/3 1/2 BSP

TA

60

70

44

5.5

22

55

• Compressed Air Distributor

• 1 inlet and 3 oulets

• Cylindrical gas thread - ISO 228 (BSPP)

• Nylon body with aluminium threads

• MAX PRESS.: 16 bar ( 232 psi )

• Provision for condensate drain and wall mounting

• Druckluftverteiler

• 1 Eingang und 3 Ausgänge

• Zylindrisches Gasgewinde - ISO 228 (BSPP).

• Körper aus Nylon mit Alu-Gewinden

• MAX. BETRIEBSD.: 16 bar ( 232 psi )

• Vorrüstung für Kondensatablass und Wandmontage

COD.

MOD.

I

O

N°3 x 1/2 BSP

1

151

A

B

C

D

Ø

E

F

79
