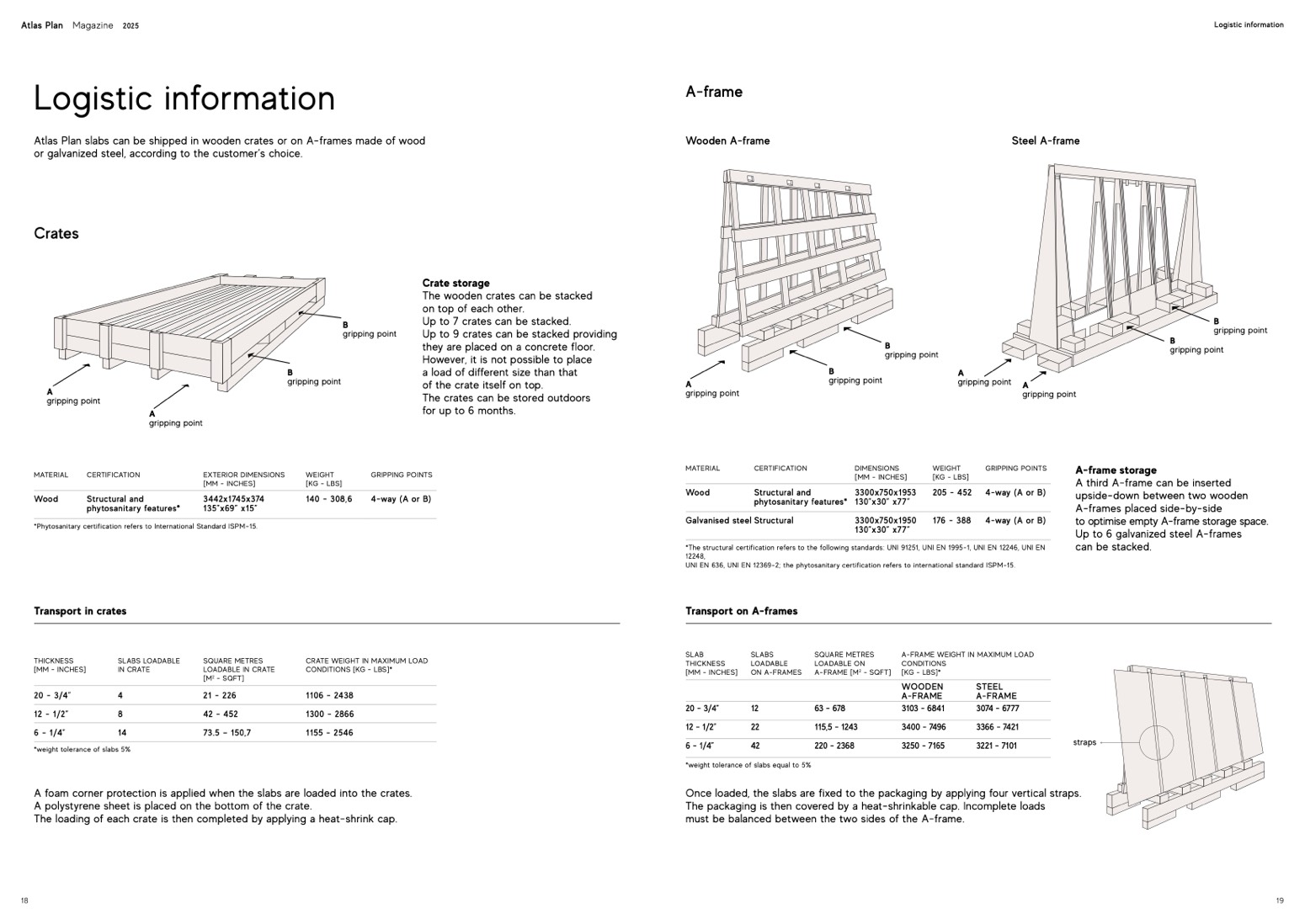

Logistic information

Logistic information

Atlas Plan slabs can be shipped in wooden crates or on A-frames made of wood

or galvanized steel, according to the customer’s choice.

A-frame

Wooden A-frame

Steel A-frame

Crates

A

gripping point

MATERIAL

CERTIFICATION

A

gripping point

B

gripping point

Crate storage

The wooden crates can be stacked

on top of each other.

Up to 7 crates can be stacked.

Up to 9 crates can be stacked providing

they are placed on a concrete floor.

However, it is not possible to place

a load of different size than that

of the crate itself on top.

The crates can be stored outdoors

for up to 6 months.

GRIPPING POINTS

4-way (A or B)

B

gripping point

B

gripping point

B

gripping point

Wood

Structural and

phytosanitary features*

A third A-frame can be inserted

upside-down between two wooden

A-frames placed side-by-side

to optimise empty A-frame storage space.

Up to 6 galvanized steel A-frames

can be stacked.

EXTERIOR DIMENSIONS

[MM - INCHES]

3442x1745x374

135”x69” x15”

CERTIFICATION

Structural and

phytosanitary features*

DIMENSIONS

[MM - INCHES]

3300x750x1953

130”x30” x77”

3300x750x1950

130”x30” x77”

WEIGHT

[KG - LBS]

205 - 452

176 - 388

GRIPPING POINTS

4-way (A or B)

4-way (A or B)

A-frame storage

B

gripping point

WEIGHT

[KG - LBS]

140 - 308,6

A

gripping point

MATERIAL

Wood

B

gripping point

A

gripping point

A

gripping point

*Phytosanitary certification refers to International Standard ISPM-15.

Galvanised steel Structural

Transport in crates

Transport on A-frames

THICKNESS

[MM - INCHES]

20 - 3/4”

12 - 1/2”

6 - 1/4”

SLABS LOADABLE

IN CRATE

4

8

14

SQUARE METRES

LOADABLE IN CRATE

[M

2

- SQFT]

21 - 226

42 - 452

73.5 – 150,7

CRATE WEIGHT IN MAXIMUM LOAD

CONDITIONS [KG - LBS]*

1106 - 2438

1300 - 2866

1155 - 2546

SLAB

THICKNESS

[MM - INCHES]

20 - 3/4”

12 - 1/2”

6 - 1/4”

SLABS

LOADABLE

ON A-FRAMES

12

22

42

SQUARE METRES

LOADABLE ON

A-FRAME [M

2

- SQFT]

63 - 678

115,5 - 1243

220 - 2368

A-FRAME WEIGHT IN MAXIMUM LOAD

CONDITIONS

[KG - LBS]*

*The structural certification refers to the following standards: UNI 91251, UNI EN 1995-1, UNI EN 12246, UNI EN

12248,

UNI EN 636, UNI EN 12369-2; the phytosanitary certification refers to international standard ISPM-15.

*weight tolerance of slabs 5%

WOODEN

A-FRAME

3103 - 6841

3400 - 7496

3250 - 7165

STEEL

A-FRAME

3074 - 6777

3366 - 7421

3221 - 7101

straps

straps.

18

19

A foam corner protection is applied when the slabs are loaded into the crates.

A polystyrene sheet is placed on the bottom of the crate.

The loading of each crate is then completed by applying a heat-shrink cap.

Once loaded, the slabs are fixed to the packaging by applying four vertical

The packaging is then covered by a heat-shrinkable cap. Incomplete loads

must be balanced between the two sides of the A-frame.

*weight tolerance of slabs equal to 5%
