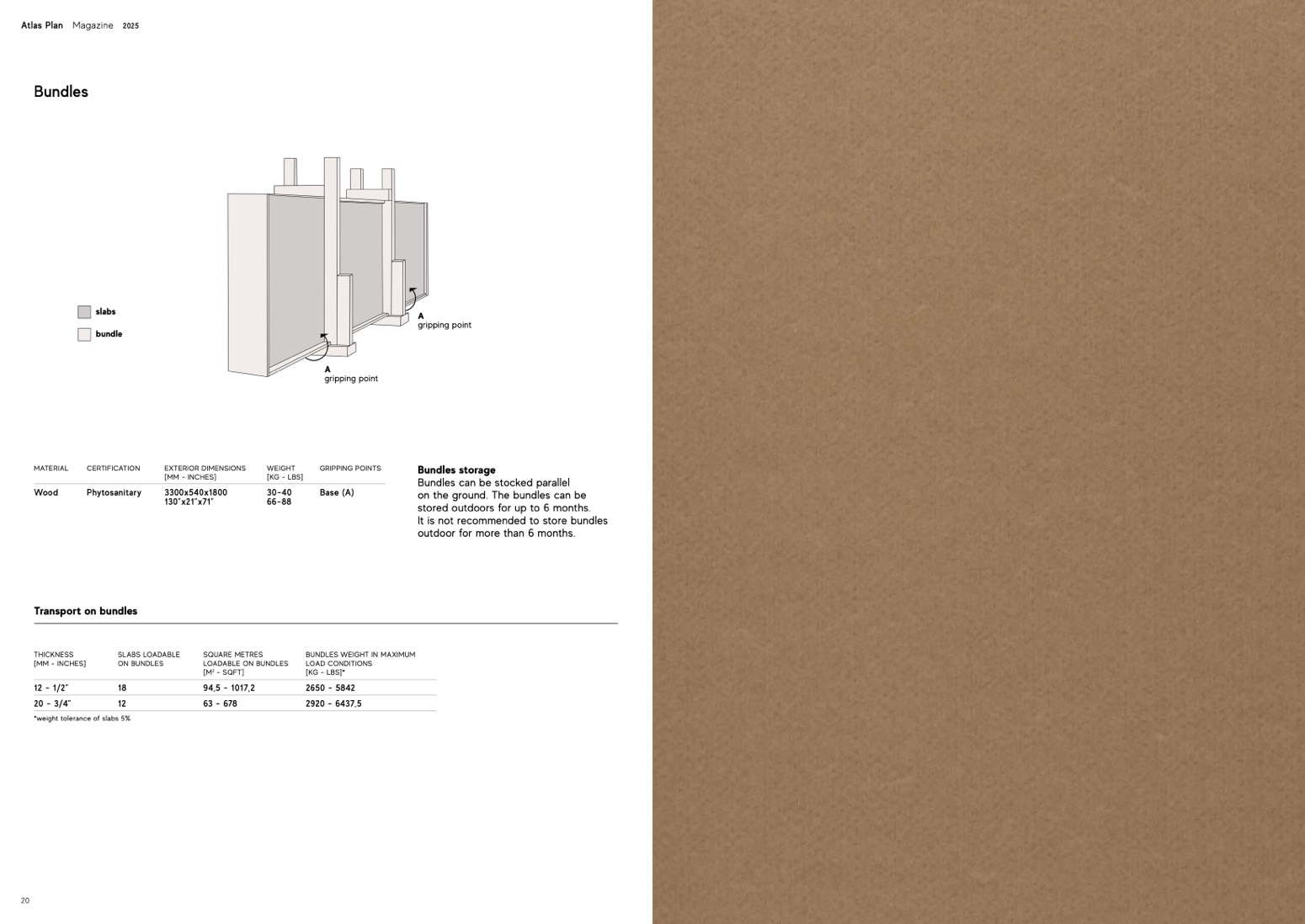

Atlas Plan Magazine 2025

Bundles

MATERIAL

CERTIFICATION

Wood

Phytosanitary

Transport on bundles

EXTERIOR DIMENSIONS

[MM - INCHES]

3300x540x1800

130”x21”x71”

WEIGHT

[KG - LBS]

30-40

66-88

A

gripping point

GRIPPING POINTS

Base (A)

slabs

bundle

A

gripping point

Bundles storage

Bundles can be stocked parallel

on the ground. The bundles can be

stored outdoors for up to 6 months.

It is not recommended to store bundles

outdoor for more than 6 months.

THICKNESS

[MM - INCHES]

12 - 1/2”

20 - 3/4”

SLABS LOADABLE

ON BUNDLES

18

12

SQUARE METRES

LOADABLE ON BUNDLES

[M

2

- SQFT]

94,5 - 1017,2

63 - 678

BUNDLES WEIGHT IN MAXIMUM

LOAD CONDITIONS

[KG - LBS]*

2650 - 5842

2920 - 6437,5

20

*weight tolerance of slabs 5%
