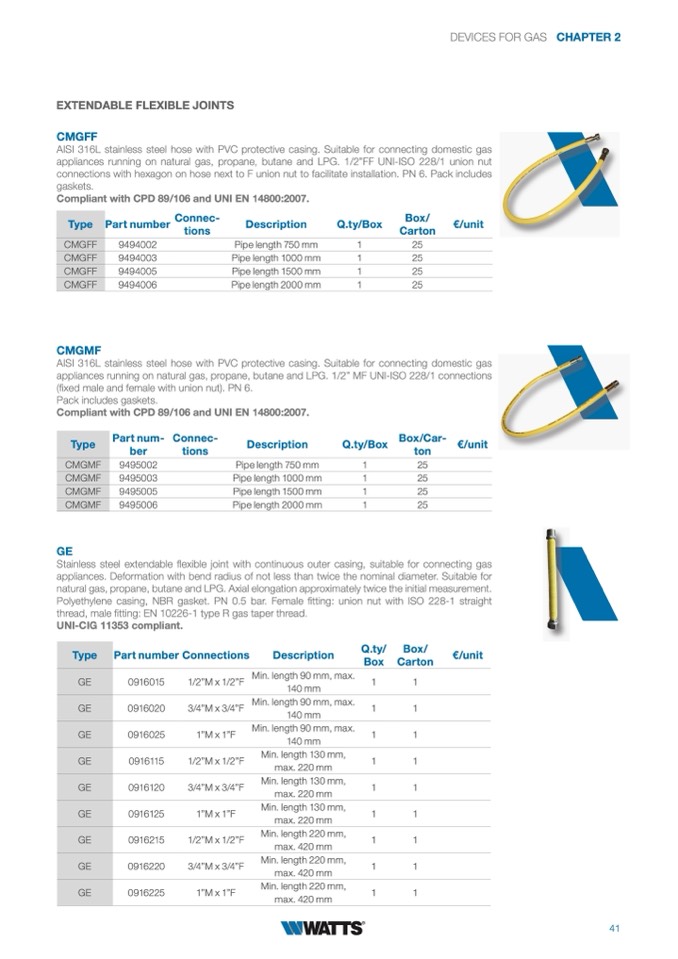

EXTENDABLE FLEXIBLE JOINTS

CMGFF

AISI 316L stainless steel hose with PVC protective casing. Suitable for connecting domestic gas

appliances running on natural gas, propane, butane and LPG. 1/2”FF UNI-ISO 228/1 union nut

connections with hexagon on hose next to F union nut to facilitate installation. PN 6. Pack includes

gaskets.

Compliant with CPD 89/106 and UNI EN 14800:2007.

CMGMF

DEVICES FOR GAS

CHAPTER 2

Type

CMGFF

CMGFF

CMGFF

CMGFF

Part number

Connec-

tions

9494002

9494003

9494005

9494006

Description

Pipe length 750 mm

Pipe length 1000 mm

Pipe length 1500 mm

Pipe length 2000 mm

Q.ty/Box

Box/

Carton

1

25

1

25

1

25

1

25

€/unit

AISI 316L stainless steel hose with PVC protective casing. Suitable for connecting domestic gas

appliances running on natural gas, propane, butane and LPG. 1/2” MF UNI-ISO 228/1 connections

(fixed male and female with union nut). PN 6.

Pack includes gaskets.

Compliant with CPD 89/106 and UNI EN 14800:2007.

Type

CMGMF

CMGMF

CMGMF

CMGMF

Part num-

ber

9495002

9495003

9495005

9495006

Connec-

tions

Description

Pipe length 750 mm

Pipe length 1000 mm

Pipe length 1500 mm

Pipe length 2000 mm

Q.ty/Box

Box/Car-

ton

1

25

1

25

1

25

1

25

€/unit

GE

Stainless steel extendable flexible joint with continuous outer casing, suitable for connecting gas

appliances. Deformation with bend radius of not less than twice the nominal diameter. Suitable for

natural gas, propane, butane and LPG. Axial elongation approximately twice the initial measurement.

Polyethylene casing, NBR gasket. PN 0.5 bar. Female fitting: union nut with ISO 228-1 straight

thread, male fitting: EN 10226-1 type R gas taper thread.

UNI-CIG 11353 compliant.

Part number Connections

Description

Q.ty/ Box/

Box Carton

€/unit

Type

GE

GE

GE

GE

GE

GE

GE

GE

GE

0916015

0916020

0916025

0916115

0916120

0916125

0916215

0916220

0916225

1/2”M x 1/2”F

3/4”M x 3/4”F

1”M x 1”F

1/2”M x 1/2”F

3/4”M x 3/4”F

1”M x 1”F

1/2”M x 1/2”F

3/4”M x 3/4”F

1”M x 1”F

Min. length 90 mm, max.

1

1

140mm

Min. length 90 mm, max.

1

1

140mm

Min. length 90 mm, max.

1

1

140mm

Min. length 130 mm,

1

1

max. 220 mm

Min. length 130 mm,

1

1

max. 220 mm

Min. length 130 mm,

1

1

max. 220 mm

Min. length 220 mm,

1

1

max. 420 mm

Min. length 220 mm,

1

1

max. 420 mm

Min. length 220 mm,

1

1

max. 420 mm

41
