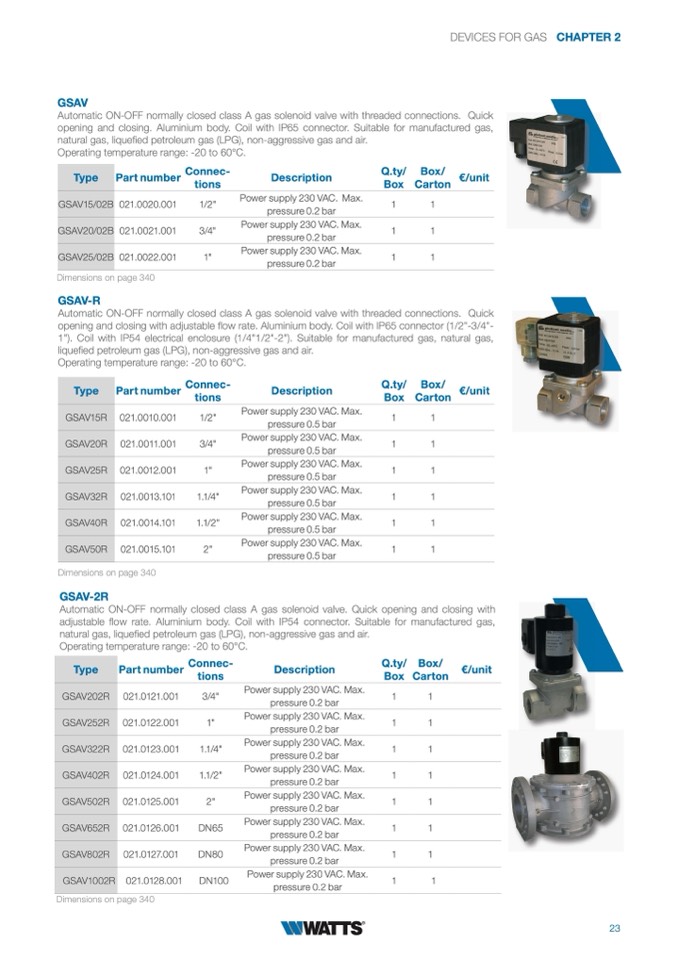

GSAV

Automatic ON-OFF normally closed class A gas solenoid valve with threaded connections. Quick

opening and closing. Aluminium body. Coil with IP65 connector. Suitable for manufactured gas,

natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air.

Operating temperature range: -20 to 60°C.

DEVICES FOR GAS

CHAPTER 2

Type

GSAV15/02B

GSAV20/02B

GSAV25/02B

Part number

Connec-

tions

Description

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Q.ty/ Box/

Box Carton

1

1

1

1

1

1

€/unit

021.0020.001

021.0021.001

021.0022.001

Dimensions on page 340

GSAV-R

1/2"

3/4"

1"

Automatic ON-OFF normally closed class A gas solenoid valve with threaded connections. Quick

opening and closing with adjustable flow rate. Aluminium body. Coil with IP65 connector (1/2"-3/4"-

1"). Coil with IP54 electrical enclosure (1/4"1/2"-2"). Suitable for manufactured gas, natural gas,

liquefied petroleum gas (LPG), non-aggressive gas and air.

Operating temperature range: -20 to 60°C.

Part number

Connec-

tions

Q.ty/ Box/

€/unit

Box Carton

1

1

1

1

1

1

1

1

1

1

1

1

Type

GSAV15R

GSAV20R

GSAV25R

GSAV32R

GSAV40R

GSAV50R

021.0010.001

021.0011.001

021.0012.001

021.0013.101

021.0014.101

021.0015.101

Dimensions on page 340

GSAV-2R

1/2"

3/4"

1"

1.1/4"

1.1/2"

2"

Description

Power supply 230 VAC. Max.

pressure 0.5 bar

Power supply 230 VAC. Max.

pressure 0.5 bar

Power supply 230 VAC. Max.

pressure 0.5 bar

Power supply 230 VAC. Max.

pressure 0.5 bar

Power supply 230 VAC. Max.

pressure 0.5 bar

Power supply 230 VAC. Max.

pressure 0.5 bar

Automatic ON-OFF normally closed class A gas solenoid valve. Quick opening and closing with

adjustable flow rate. Aluminium body. Coil with IP54 connector. Suitable for manufactured gas,

natural gas, lique

fied petroleum gas (LPG), non-aggressive gas and air.

Operating temperature range: -20 to 60°C.

Type

GSAV202R

GSAV252R

GSAV322R

GSAV402R

GSAV502R

GSAV652R

GSAV802R

GSAV1002R

Part number

Connec-

tions

Description

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.2 bar

Q.ty/ Box/

Box Carton

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

€/unit

021.0121.001

021.0122.001

021.0123.001

021.0124.001

021.0125.001

021.0126.001

021.0127.001

021.0128.001

3/4"

1"

1.1/4"

1.1/2"

2"

DN65

DN80

DN100

Dimensions on page 340

23
