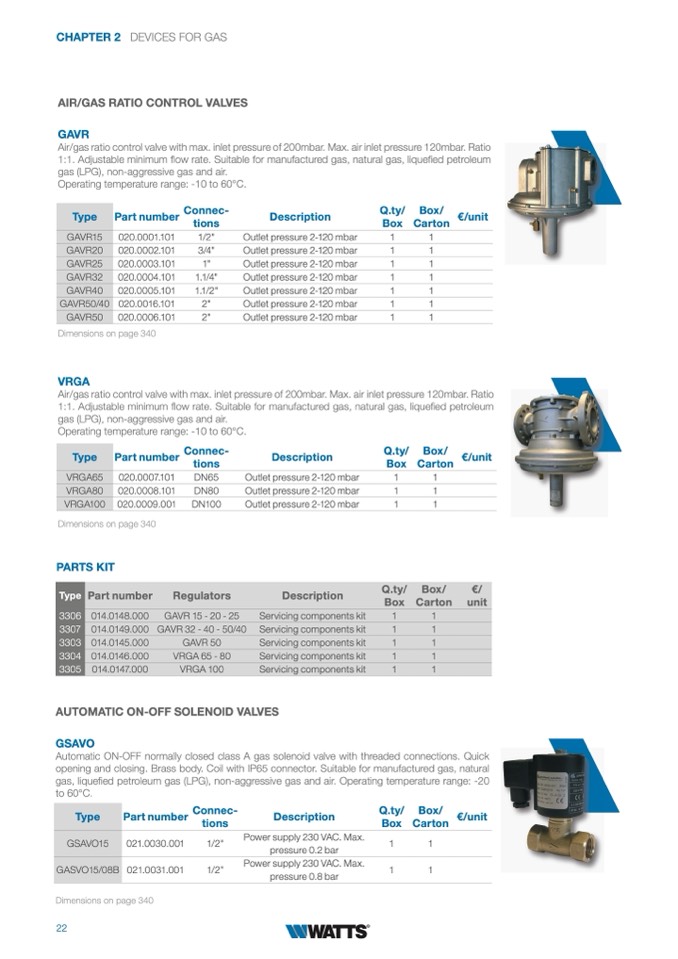

CHAPTER 2 DEVICES FOR GAS

AIR/GAS RATIO CONTROL VALVES

GAVR

Air/gas ratio control valve with max. inlet pressure of 200mbar. Max. air inlet pressure 120mbar. Ratio

1:1. Adjustable minimum flow rate. Suitable for manufactured gas, natural gas, liquefied petroleum

gas (LPG), non-aggressive gas and air.

Operating temperature range: -10 to 60°C.

Type

GAVR15

GAVR20

GAVR25

GAVR32

GAVR40

GAVR50/40

GAVR50

Part number

Connec-

tions

Description

Outlet pressure 2-120 mbar

Outlet pressure 2-120 mbar

Outlet pressure 2-120 mbar

Outlet pressure 2-120 mbar

Outlet pressure 2-120 mbar

Outlet pressure 2-120 mbar

Outlet pressure 2-120 mbar

Q.ty/ Box/

€/unit

Box Carton

1

1

1

1

1

1

1

1

1

1

1

1

1

1

020.0001.101

020.0002.101

020.0003.101

020.0004.101

020.0005.101

020.0016.101

020.0006.101

Dimensions on page 340

VRGA

1/2"

3/4"

1"

1.1/4"

1.1/2"

2"

2"

Air/gas ratio control valve with max. inlet pressure of 200mbar. Max. air inlet pressure 120mbar. Ratio

1:1. Adjustable minimum flow rate. Suitable for manufactured gas, natural gas, liquefied petroleum

gas (LPG), non-aggressive gas and air.

Operating temperature range: -10 to 60°C.

Type

VRGA65

VRGA80

VRGA100

Part number

Connec-

tions

Description

Outlet pressure 2-120 mbar

Outlet pressure 2-120 mbar

Outlet pressure 2-120 mbar

Q.ty/ Box/

Box Carton

1

1

1

1

1

1

€/unit

020.0007.101

020.0008.101

020.0009.001

Dimensions on page 340

PARTS KIT

DN65

DN80

DN100

Type

Part number

Regulators

Description

Q.ty/

Box

Box/

Carton

€/

unit

3306

014.0148.000

GAVR 15 - 20 - 25

Servicing components kit

1

1

3307

014.0149.000

GAVR 32 - 40 - 50/40

Servicing components kit

1

1

3303

014.0145.000

GAVR 50

Servicing components kit

1

1

3304

014.0146.000

VRGA 65 - 80

Servicing components kit

1

1

3305

014.0147.000

VRGA 100

Servicing components kit

1

1

AUTOMATIC ON-OFF SOLENOID VALVES

GSAVO

Automatic ON-OFF normally closed class A gas solenoid valve with threaded connections. Quick

opening and closing. Brass body. Coil with IP65 connector. Suitable for manufactured gas, natural

gas, liquefied petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -20

to 60°C.

Type

GSAVO15

GASVO15/08B

Part number

Connec-

tions

Description

Power supply 230 VAC. Max.

pressure 0.2 bar

Power supply 230 VAC. Max.

pressure 0.8 bar

Q.ty/ Box/

Box Carton

1

1

1

1

€/unit

021.0030.001

021.0031.001

Dimensions on page 340

1/2"

1/2"
