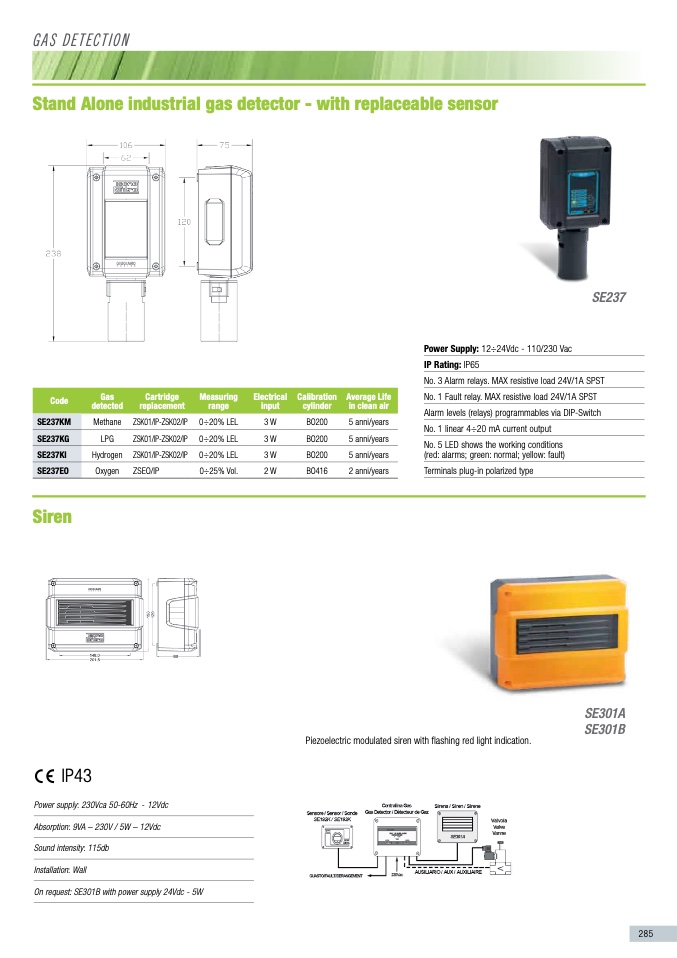

Gas DeTeCTIon

Stand Alone industrial gas detector - with replaceable sensor

code

sE237km

Gas

detected

cartridge

replacement

measuring

range

Electrical

input

calibration

cylinder

average life

in clean air

SE237

No. 3 Alarm relays. MAX resistive load 24V/1A SPST

No. 1 Fault relay. MAX resistive load 24V/1A SPST

Alarm levels (relays) programmables via DIP-Switch

No. 1 linear 4÷20 mA current output

No. 5 LED shows the working conditions

(red: alarms; green: normal; yellow: fault)

Terminals plug-in polarized type

power supply: 12÷24Vdc - 110/230 Vac

Ip rating: IP65

Methane

LPG

Hydrogen

Oxygen

ZSK01/IP-ZSK02/IP

ZSK01/IP-ZSK02/IP

ZSK01/IP-ZSK02/IP

ZSEO/IP

0÷20% LEL

0÷20% LEL

0÷20% LEL

0÷25% Vol.

3 W

3 W

3 W

2 W

BO200

5 anni/years

BO200

5 anni/years

BO200

5 anni/years

BO416

2 anni/years

sE237kG

sE237kI

sE237Eo

Siren

IP43

Piezoelectric modulated siren with flashing red light indication.

SE301A

SE301B

Power supply: 230Vca 50-60Hz - 12Vdc

Absorption: 9VA – 230V / 5W – 12Vdc

Sound intensity: 115db

Installation: Wall

On request: SE301B with power supply 24Vdc - 5W

285
