Gas DeTeCTIon

Type

Detected gas

cylinder calibration

average time

sensors

sT441

Methane LPG

BO200

5 years

5 years

Type

Detected gas

cylinder calibration

average time

sensors

sE193km

sE193kG

Methane LPG

BO200

5 years

5 years

284

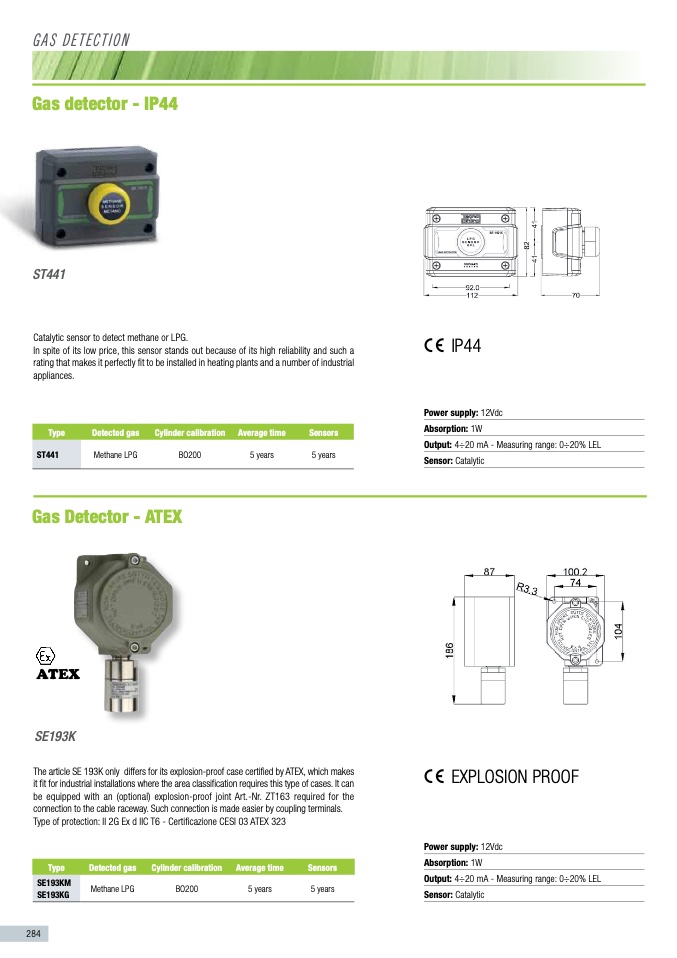

Gas detector - IP44

ST441

Catalytic sensor to detect methane or LPG.

In spite of its low price, this sensor stands out because of its high reliability and such a

rating that makes it perfectly fit to be installed in heating plants and a number of industrial

appliances.

Gas Detector - ATEx

ATEX

SE193K

The article SE 193K only differs for its explosion-proof case certified by ATEX, which makes

it fit for industrial installations where the area classification requires this type of cases. It can

be equipped with an (optional) explosion-proof joint Art.-Nr. ZT163 required for the

connection to the cable raceway. Such connection is made easier by coupling terminals.

Type of protection: II 2G Ex d IIC T6 - Certificazione CESI 03 ATEX 323

IP44

power supply: 12Vdc

absorption: 1W

output: 4÷20 mA - Measuring range: 0÷20% LEL

sensor: Catalytic

EXPLOSION PROOF

power supply: 12Vdc

absorption: 1W

output: 4÷20 mA - Measuring range: 0÷20% LEL

sensor: Catalytic
