Gas DeTeCTIon
Type
Detected gas
Function
Output
Capacity
Calibration
Sensor life
Storage time
BETA 752/M
BETA 752/G
Methane
LPG
Stand alone
N°1 Relay
Buzzer 85dB (A) 1 m
8A 250Vac
30Vdc
BO205
5 years
5 years
BETA 754/M
BETA 754/G
Methane
LPG
Central unit
N°1 Relay
Buzzer 85dB (A) 1 m
8A 250Vac
30Vdc
BO205
5 years
5 years
BETA 756/M
BETA 756/G
Methane
LPG
Remote unit
Buzzer 85 dB (A) 1 m
NO
BO205
5 years
5 years
Type
Detected gas
Outputs
Function
Capacity
Calibration
Sensor life
Storage time
GAMMA 652/M
GAMMA 652/G
Methane
LPG
N°1 Relay
Buzzer 85dB (A) 1 m
Stand alone
3(1)A 250Vac
2A 24Vcc.
BO205
5 years
5 years
GAMMA 654/M
GAMMA 654/G
Methane
LPG
N°1 Relay
Buzzer 85dB (A) 1 m
Central unit
3(1)A 250Vac
2A 24Vcc.
BO205
5 years
5 years
GAMMA 656/M
GAMMA 656/G
Methane
LPG
Buzzer 85dB (A) 1 m
Remote unit
NO
BO205
5 years
5 years
286

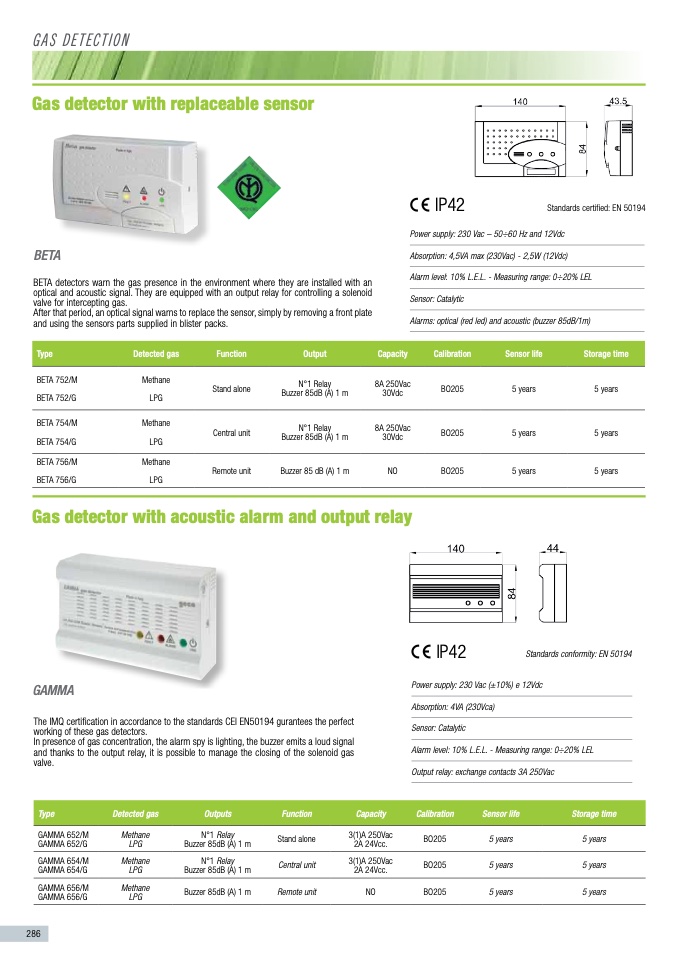

Gas detector with replaceable sensor
BETA
BETA detectors warn the gas presence in the environment where they are installed with an
optical and acoustic signal. They are equipped with an output relay for controlling a solenoid
valve for intercepting gas.
After that period, an optical signal warns to replace the sensor, simply by removing a front plate
and using the sensors parts supplied in blister packs.
IP42
Standards certified: EN 50194
Power supply: 230 Vac – 50÷60 Hz and 12Vdc
Absorption: 4,5VA max (230Vac) - 2,5W (12Vdc)
Alarm level: 10% L.E.L. - Measuring range: 0÷20% LEL
Sensor: Catalytic
Alarms: optical (red led) and acoustic (buzzer 85dB/1m)
Gas detector with acoustic alarm and output relay
GAMMA
The IMQ certification in accordance to the standards CEI EN50194 gurantees the perfect
working of these gas detectors.
In presence of gas concentration, the alarm spy is lighting, the buzzer emits a loud signal
and thanks to the output relay, it is possible to manage the closing of the solenoid gas
valve.
IP42
Standards conformity: EN 50194
Power supply: 230 Vac (±10%) e 12Vdc
Absorption: 4VA (230Vca)
Sensor: Catalytic
Alarm level: 10% L.E.L. - Measuring range: 0÷20% LEL
Output relay: exchange contacts 3A 250Vac
