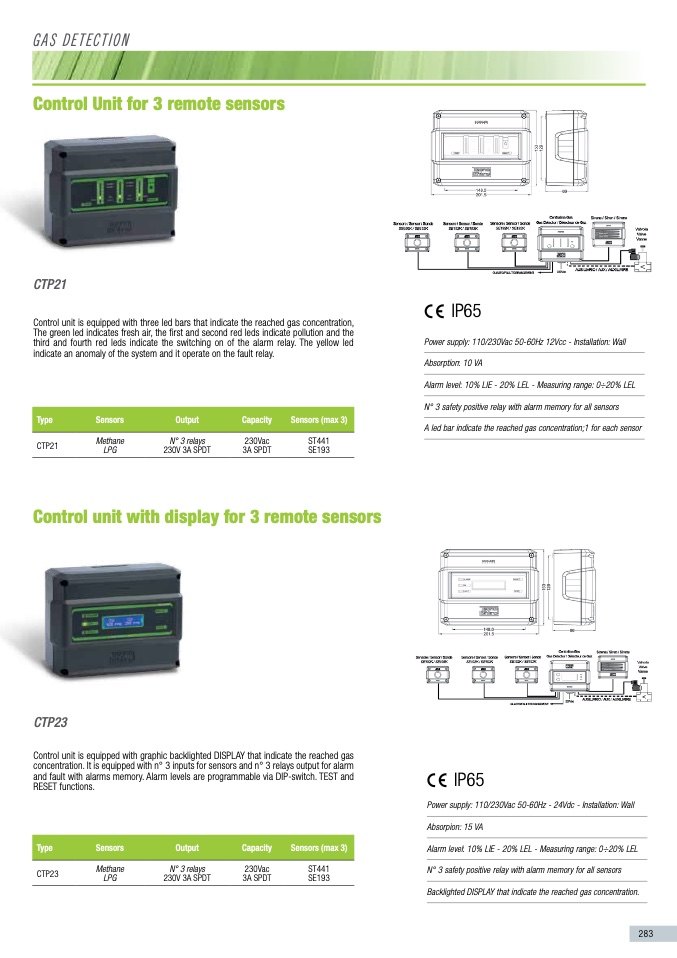

Gas DeTeCTIon

Control unit for 3 remote sensors

CTP21

Control unit is equipped with three led bars that indicate the reached gas concentration,

The green led indicates fresh air, the first and second red leds indicate pollution and the

third and fourth red leds indicate the switching on of the alarm relay. The yellow led

indicate an anomaly of the system and it operate on the fault relay.

IP65

Power supply: 110/230Vac 50-60Hz 12Vcc - Installation: Wall

Absorption: 10 VA

Alarm level: 10% LIE - 20% LEL - Measuring range: 0÷20% LEL

N° 3 safety positive relay with alarm memory for all sensors

A led bar indicate the reached gas concentration;1 for each sensor

IP65

Power supply: 110/230Vac 50-60Hz - 24Vdc - Installation: Wall

Absorpion: 15 VA

Alarm level: 10% LIE - 20% LEL - Measuring range: 0÷20% LEL

N° 3 safety positive relay with alarm memory for all sensors

Backlighted DISPLAY that indicate the reached gas concentration.

Type

Sensors

Output

Capacity

Sensors (max 3)

CTP21

Methane

LPG

N° 3 relays

230V 3A SPDT

230Vac

3A SPDT

ST441

SE193

Control unit with display for 3 remote sensors

CTP23

Control unit is equipped with graphic backlighted DISPLAY that indicate the reached gas

concentration. It is equipped with n° 3 inputs for sensors and n° 3 relays output for alarm

and fault with alarms memory. Alarm levels are programmable via DIP-switch. TEST and

RESET functions.

Type

Sensors

Output

Capacity

Sensors (max 3)

CTP23

Methane

LPG

N° 3 relays

230V 3A SPDT

230Vac

3A SPDT

ST441

SE193

283
