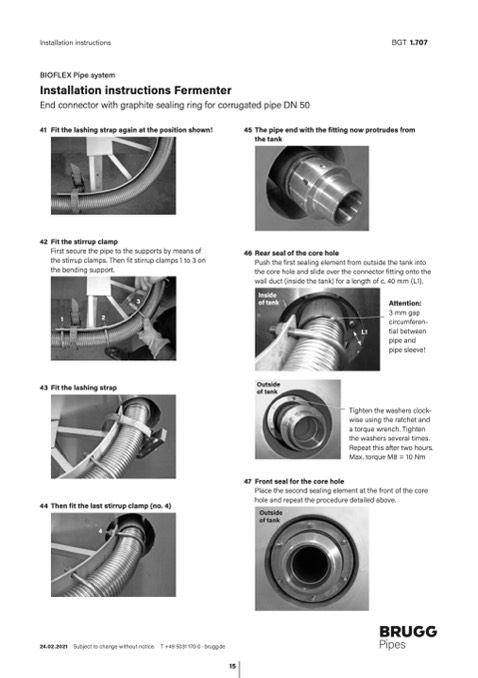

Installation instructions

BGT 1.707

BIOFLEX Pipe system

Installation instructions Fermenter

End connector with graphite sealing ring for corrugated pipe DN 50

41 Fit the lashing strap again at the position shown!

42 Fit the stirrup clamp

First secure the pipe to the supports by means of

the stirrup clamps. Then fit stirrup clamps 1 to 3 on

the bending support.

45 The pipe end with the fitting now protrudes from

the tank

46 Rear seal of the core hole

Push the first sealing element from outside the tank into

the core hole and slide over the connector fitting onto the

wall duct (inside the tank) for a length of c. 40 mm (L1).

2

43 Fit the lashing strap

1

3

Inside

of tank

Outside

of tank

47 Front seal for the core hole

Attention:

3 mm gap

circumferen-

L1

tial between

pipe and

pipe sleeve!

Tighten the washers clock-

wise using the ratchet and

a torque wrench. Tighten

the washers several times.

Repeat this after two hours.

Max. torque M8 = 10 Nm

44 Then fit the last stirrup clamp (no. 4)

4

Place the second sealing element at the front of the core

hole and repeat the procedure detailed above.

Outside

of tank

24.02.2021 Subject to change without notice. T +49 5031 170-0 · brugg.de

Page 8

15
