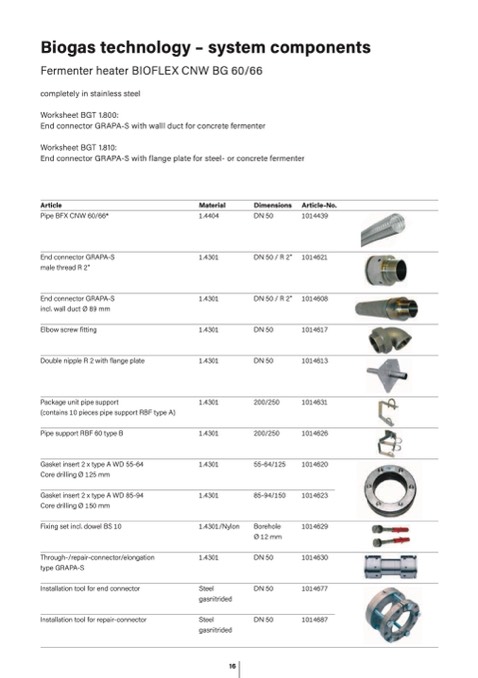

Biogas technology – system components

Fermenter heater BIOFLEX CNW BG 60/66

completely in stainless steel

Worksheet BGT 1.800:

End connector GRAPA-S with walll duct for concrete fermenter

Worksheet BGT 1.810:

End connector GRAPA-S with flange plate for steel- or concrete fermenter

Article

Pipe BFX CNW 60/66*

End connector GRAPA-S

male thread R 2"

End connector GRAPA-S

incl. wall duct Ø 89 mm

Elbow screw fitting

Double nipple R 2 with flange plate

Package unit pipe support

(contains 10 pieces pipe support RBF type A)

Pipe support RBF 60 type B

Gasket insert 2 x type A WD 55-64

Core drilling Ø 125 mm

Gasket insert 2 x type A WD 85-94

Core drilling Ø 150 mm

Fixing set incl. dowel BS 10

Through-/repair-connector/elongation

type GRAPA-S

Installation tool for end connector

Installation tool for repair-connector

Material

Dimensions

1.4404

DN 50

1.4301

DN 50 / R 2"

1.4301

DN 50 / R 2"

1.4301

DN 50

1.4301

DN 50

1.4301

200/250

1.4301

200/250

1.4301

55-64/125

1.4301

85-94/150

1.4301/Nylon

Borehole

Ø 12 mm

1.4301

DN 50

Steel

DN 50

gasnitrided

Steel

DN 50

gasnitrided

Article-No.

1014439

1014621

1014608

1014617

1014613

1014631

1014626

1014620

1014623

1014629

1014630

1014677

1014687
