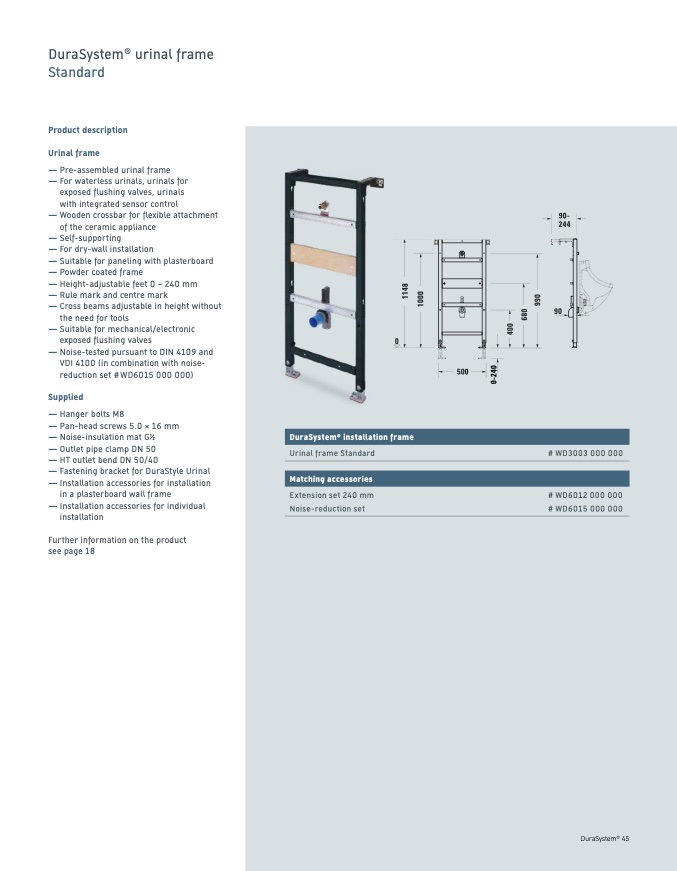

DuraSystem

®

urinal frame

Standard

Product description

Urinal frame

— Pre-assembled urinal frame

— For waterless urinals, urinals for

exposed flushing valves, urinals

with integrated sensor control

— Wooden crossbar for flexible attachment

of the ceramic appliance

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame

— Height-adjustable feet 0 − 240 mm

— Rule mark and centre mark

— Cross beams adjustable in height without

the need for tools

— Suitable for mechanical/electronic

exposed flushing valves

— Noise-tested pursuant to DIN 4109 and

VDI 4100 (in combination with noise-

reduction set # WD6015 000 000)

Supplied

— Hanger bolts M8

— Pan-head screws 5.0 × 16 mm

— Noise-insulation mat G1⁄2

— Outlet pipe clamp DN 50

— HT outlet bend DN 50/40

— Fastening bracket for DuraStyle Urinal

— Installation accessories for installation

in a plasterboard wall frame

— Installation accessories for individual

installation

Further information on the product

see page 18

90-

244

90

0

DuraSystem

®

installation frame

Urinal frame Standard

Matching accessories

Extension set 240 mm

Noise-reduction set

500

0

-

2

4

0

4

0

0

6

8

0

1

1

4

8

1

0

0

0

9

9

0

# WD3003 000 000

# WD6012 000 000

# WD6015 000 000

DuraSystem

®
