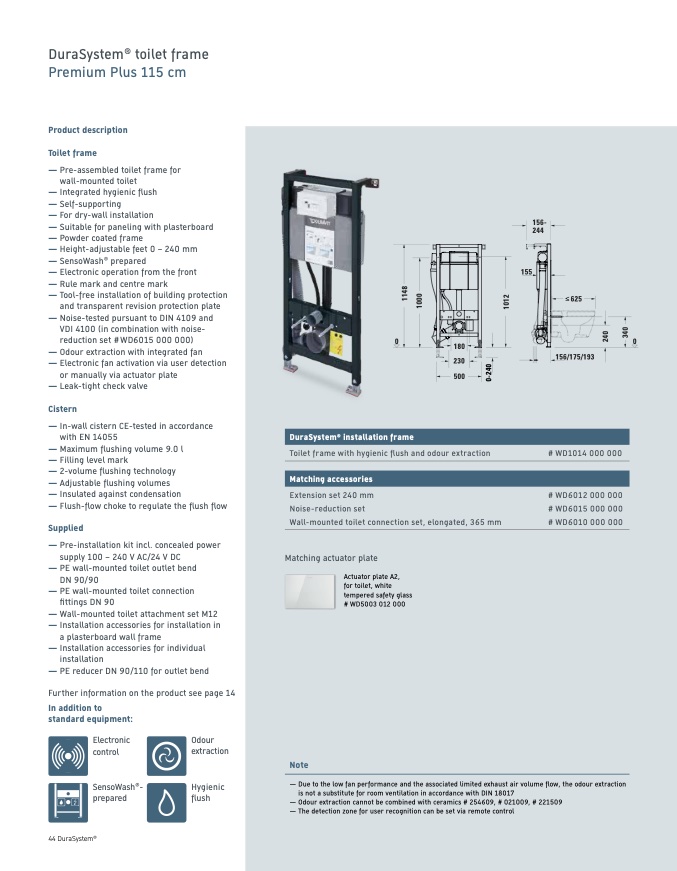

DuraSystem

®

toilet frame

Premium Plus 115 cm

Product description

Toilet frame

— Pre-assembled toilet frame for

wall-mounted toilet

— Integrated hygienic

flush

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame

— Height-adjustable feet 0 − 240 mm

— SensoWash

®

prepared

— Electronic operation from the front

— Rule mark and centre mark

— Tool-free installation of building protection

and transparent revision protection plate

— Noise-tested pursuant to DIN 4109 and

VDI 4100 (in combination with noise-

reduction set # WD6015 000 000)

— Odour extraction with integrated fan

— Electronic fan activation via user detection

or manually via actuator plate

— Leak-tight check valve

Cistern

— In-wall cistern CE-tested in accordance

with EN 14055

— Maximum flushing volume 9.0 l

— Filling level mark

— 2-volume flushing technology

— Adjustable flushing volumes

— Insulated against condensation

— Flush-flow choke to regulate the flush flow

Supplied

— Pre-installation kit incl. concealed power

supply 100 – 240 V AC/24 V DC

— PE wall-mounted toilet outlet bend

DN 90/90

— PE wall-mounted toilet connection

fittings DN 90

— Wall-mounted toilet attachment set M12

— Installation accessories for installation in

a plasterboard wall frame

— Installation accessories for individual

installation

— PE reducer DN 90/110 for outlet bend

Further information on the product see page 14

155

156-

244

≥ 625

156/175/193

# WD1014 000 000

# WD6012 000 000

# WD6015 000 000

# WD6010 000 000

0

-

2

4

0

2

4

0

3

4

0

1

1

4

8

1

0

0

0

1

0

1

2

In addition to

standard equipment:

Electronic

control

SensoWash

®

-

prepared

Odour

extraction

Hygienic

flush

Note

— Due to the low fan performance and the associated limited exhaust air volume flow, the odour extraction

is not a substitute for room ventilation in accordance with DIN 18017

— Odour extraction cannot be combined with ceramics # 254609, # 021009, # 221509

— The detection zone for user recognition can be set via remote control

44 DuraSystem

®

0

DuraSystem

®

installation frame

180

230

500

0

Toilet frame with hygienic flush and odour extraction

Matching accessories

Extension set 240 mm

Noise-reduction set

Wall-mounted toilet connection set, elongated, 365 mm

Matching actuator plate

Actuator plate A2,

for toilet, white

tempered safety glass

# WD5003 012 000
