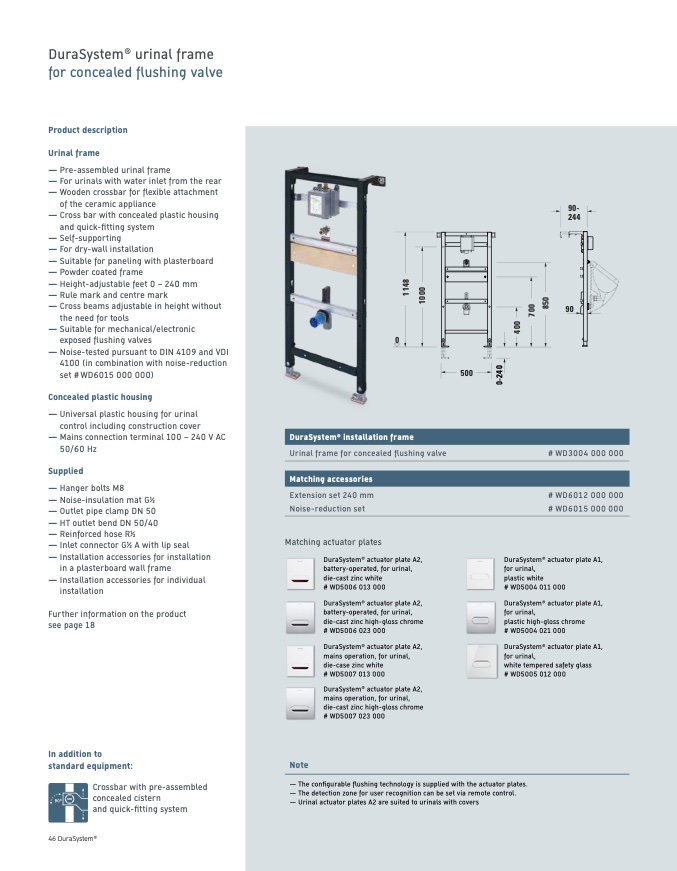

DuraSystem

®

urinal frame

for concealed flushing valve

Product description

Urinal frame

— Pre-assembled urinal frame

— For urinals with water inlet from the rear

— Wooden crossbar for flexible attachment

of the ceramic appliance

— Cross bar with concealed plastic housing

and quick-fitting system

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame

— Height-adjustable feet 0 – 240 mm

— Rule mark and centre mark

— Cross beams adjustable in height without

the need for tools

— Suitable for mechanical/electronic

exposed flushing valves

— Noise-tested pursuant to DIN 4109 and VDI

4100 (in combination with noise-reduction

set # WD6015 000 000)

Concealed plastic housing

— Universal plastic housing for urinal

control including construction cover

— Mains connection terminal 100 – 240 V AC

50/60 Hz

Supplied

— Hanger bolts M8

— Noise-insulation mat G1⁄2

— Outlet pipe clamp DN 50

— HT outlet bend DN 50/40

— Reinforced hose R1⁄2

— Inlet connector G1⁄2 A with lip seal

— Installation accessories for installation

in a plasterboard wall frame

— Installation accessories for individual

installation

Further information on the product

see page 18

In addition to

standard equipment:

90-

244

90

90°

Crossbar with pre-assembled

concealed cistern

and quick-fitting system

— The configurable flushing technology is supplied with the actuator plates.

— The detection zone for user recognition can be set via remote control.

— Urinal actuator plates A2 are suited to urinals with covers

46 DuraSystem

®

0

DuraSystem

®

installation frame

Urinal frame for concealed flushing valve

Matching accessories

Extension set 240 mm

Noise-reduction set

Matching actuator plates

500

0

-

2

4

0

4

0

0

7

0

0

1

1

4

8

1

0

0

0

8

5

0

Note

DuraSystem

®

actuator plate A2,

battery-operated, for urinal,

die-cast zinc white

# WD5006 013 000

DuraSystem

®

actuator plate A2,

battery-operated, for urinal,

die-cast zinc high-gloss chrome

# WD5006 023 000

DuraSystem

®

actuator plate A2,

mains operation, for urinal,

die-case zinc white

# WD5007 013 000

DuraSystem

®

actuator plate A2,

mains operation, for urinal,

die-cast zinc high-gloss chrome

# WD5007 023 000

# WD3004 000 000

# WD6012 000 000

# WD6015 000 000

DuraSystem

®

actuator plate A1,

for urinal,

plastic white

# WD5004 011 000

DuraSystem

®

actuator plate A1,

for urinal,

plastic high-gloss chrome

# WD5004 021 000

DuraSystem

®

actuator plate A1,

for urinal,

white tempered safety glass

# WD5005 012 000
