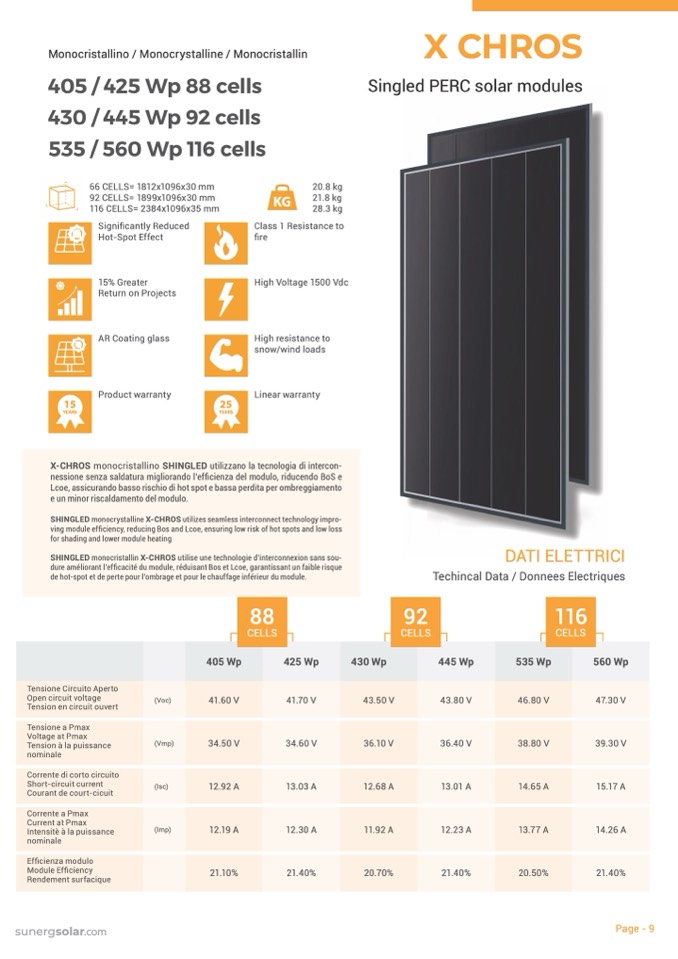

monocristallino / monocrystalline / monocristallin
X CHROS
Singled perC solar modules
405 / 425 Wp 88 cells
430 / 445 Wp 92 cells
535 / 560 Wp 116 cells
66 CELLS= 1812x1096x30 mm
92 CELLS= 1899x1096x30 mm
116 CELLS= 2384x1096x35 mm
Significantly Reduced
Hot-Spot Effect
15% Greater
return on projects
Ar Coating glass
product warranty
KG
20.8 kg
21.8 kg
28.3 kg
Class 1 resistance to
fire
High Voltage 1500 Vdc
High resistance to
snow/wind loads
Linear warranty
15
YEARS
25
YEARS
dAti eLettriCi
Techincal Data / Donnees Electriques
X-CHROS monocristallino SHINGLED utilizzano la tecnologia di intercon-
nessione senza saldatura migliorando l’efficienza del modulo, riducendo BoS e
Lcoe, assicurando basso rischio di hot spot e bassa perdita per ombreggiamento
e un minor riscaldamento del modulo.
SHINGLED monocrystalline X-CHROS utilizes seamless interconnect technology impro-
ving module efficiency, reducing Bos and Lcoe, ensuring low risk of hot spots and low loss
for shading and lower module heating
SHINGLED monocristallin X-CHROS utilise une technologie d’interconnexion sans sou-
dure améliorant l’efficacité du module, réduisant Bos et Lcoe, garantissant un faible risque
de hot-spot et de perte pour l’ombrage et pour le chauffage inférieur du module.
tensione Circuito Aperto
Open circuit voltage
tension en circuit ouvert
tensione a pmax
Voltage at Pmax
Tension à la puissance
nominale
Corrente di corto circuito
Short-circuit current
Courant de court-cicuit
Corrente a pmax
Current at pmax
Intensitè à la puissance
nominale
Efficienza modulo
Module Efficiency
Rendement surfacique
(Voc)
(Vmp)
(isc)
(imp)
405 Wp
41.60 V
34.50 V
12.92 A
12.19 A
21.10%
88
CeLLS
425 Wp
41.70 V
34.60 V
13.03 A
12.30 A
21.40%
430 Wp
43.50 V
36.10 V
12.68 A
11.92 A
20.70%
92
CeLLS
445 Wp
43.80 V
36.40 V
13.01 A
12.23 A
21.40%
535 Wp
46.80 V
38.80 V
14.65 A
13.77 A
20.50%
116
CeLLS
560 Wp
47.30 V
39.30 V
15.17 A
14.26 A
21.40%
sunergsolar.com
page - 9
