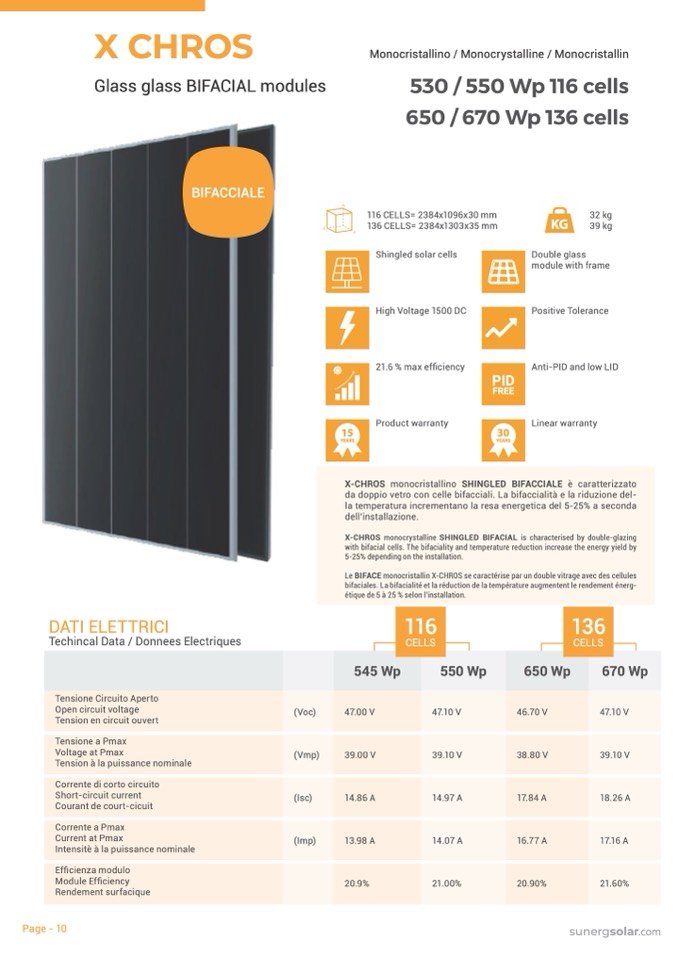

X CHROS

Glass glass BiFACiAL modules

BIFACCIALE

monocristallino / monocrystalline / monocristallin

530 / 550 Wp 116 cells

650 / 670 Wp 136 cells

dAti eLettriCi

Techincal Data / Donnees Electriques

116 CELLS= 2384x1096x30 mm

136 CELLS= 2384x1303x35 mm

Shingled solar cells

High Voltage 1500 DC

21.6 % max efficiency

product warranty

32 kg

KG 39 kg

double glass

module with frame

positive tolerance

Anti-pid and low Lid

Linear warranty

PID

FREE

15

YEARS

30

YEARS

tensione Circuito Aperto

Open circuit voltage

tension en circuit ouvert

tensione a pmax

Voltage at Pmax

Tension à la puissance nominale

Corrente di corto circuito

Short-circuit current

Courant de court-cicuit

Corrente a pmax

Current at pmax

Intensitè à la puissance nominale

Efficienza modulo

Module Efficiency

Rendement surfacique

(Voc)

(Vmp)

(isc)

(imp)

X-CHROS monocristallino SHINGLED BIFACCIALE è caratterizzato

da doppio vetro con celle bifacciali. La bifaccialità e la riduzione del-

la temperatura incrementano la resa energetica del 5-25% a seconda

dell’installazione.

X-CHROS monocrystalline SHINGLED BIFACIAL is characterised by double-glazing

with bifacial cells. The bifaciality and temperature reduction increase the energy yield by

5-25% depending on the installation.

Le BIFACE monocristallin X-CHROS se caractérise par un double vitrage avec des cellules

bifaciales. La bifacialité et la réduction de la température augmentent le rendement énerg-

étique de 5 à 25 % selon l'installation.

545 Wp

47.00 V

39.00 V

14.86 A

13.98 A

20.9%

116

CeLLS

550 Wp

47.10 V

39.10 V

14.97 A

14.07 A

21.00%

650 Wp

46.70 V

38.80 V

17.84 A

16.77 A

20.90%

136

CeLLS

670 Wp

47.10 V

39.10 V

18.26 A

17.16 A

21.60%

Page - 10
