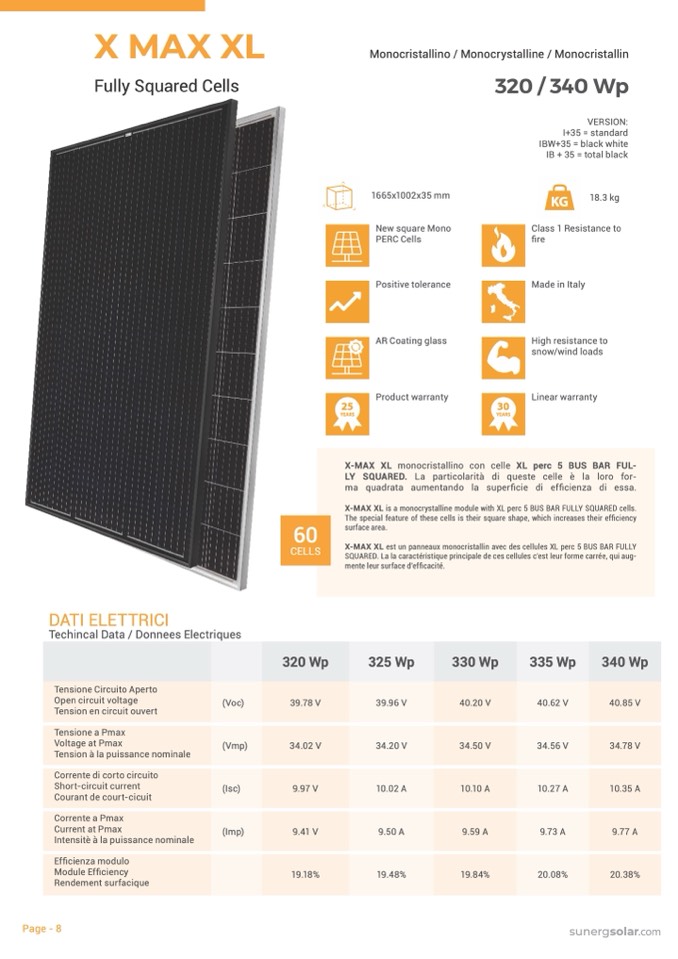

X MAX XL

Fully Squared Cells

monocristallino / monocrystalline / monocristallin

1665x1002x35 mm

New square Mono

perC Cells

positive tolerance

Ar Coating glass

product warranty

320 / 340 Wp

VERSION:

I+35 = standard

IBW+35 = black white

IB + 35 = total black

18.3 kg

KG

Class 1 resistance to

fire

made in italy

High resistance to

snow/wind loads

Linear warranty

25

YEARS

30

YEARS

X-MAX XL monocristallino con celle XL perc 5 BUS BAR FUL-

LY SQUARED. La particolarità di queste celle è la loro for-

ma quadrata aumentando la superficie di efficienza di essa.

X-MAX XL is a monocrystalline module with XL perc 5 BUS BAR FULLY SQUARED cells.

The special feature of these cells is their square shape, which increases their efficiency

surface area.

X-MAX XL est un panneaux monocristallin avec des cellules XL perc 5 BUS BAR FULLY

SQUARED. La la caractéristique principale de ces cellules c'est leur forme carrée, qui aug-

mente leur surface d'efficacité.

60

CeLLS

dAti eLettriCi

Techincal Data / Donnees Electriques

320 Wp

325 Wp

330 Wp

335 Wp

340 Wp

tensione Circuito Aperto

Open circuit voltage

tension en circuit ouvert

(Voc)

39.78 V

39.96 V

40.20 V

40.62 V

40.85 V

tensione a pmax

Voltage at Pmax

Tension à la puissance nominale

(Vmp)

34.02 V

34.20 V

34.50 V

34.56 V

34.78 V

Corrente di corto circuito

Short-circuit current

Courant de court-cicuit

(isc)

9.97 V

10.02 A

10.10 A

10.27 A

10.35 A

Corrente a pmax

Current at pmax

Intensitè à la puissance nominale

(imp)

9.41 V

9.50 A

9.59 A

9.73 A

9.77 A

Efficienza modulo

Module Efficiency

Rendement surfacique

19.18%

19.48%

19.84%

20.08%

20.38%
