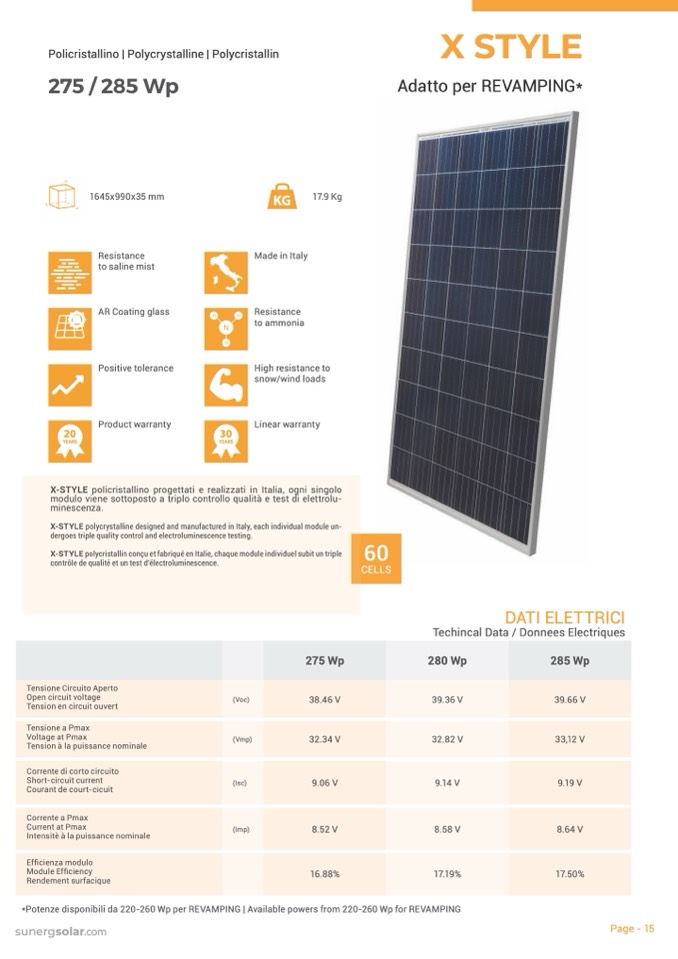

policristallino | polycrystalline | polycristallin

X STYLE

Adatto per REVAMPING*

275 / 285 Wp

1645x990x35 mm

resistance

to saline mist

Ar Coating glass

positive tolerance

product warranty

KG

made in italy

resistance

to ammonia

17.9 Kg

High resistance to

snow/wind loads

Linear warranty

20

YEARS

30

YEARS

X-STYLE policristallino progettati e realizzati in italia, ogni singolo

modulo viene sottoposto a triplo controllo qualità e test di elettrolu-

minescenza.

X-STYLE polycrystalline designed and manufactured in Italy, each individual module un-

dergoes triple quality control and electroluminescence testing.

X-STYLE polycristallin conçu et fabriqué en Italie, chaque module individuel subit un triple

contrôle de qualité et un test d'électroluminescence.

60

CeLLS

dAti eLettriCi

Techincal Data / Donnees Electriques

275 Wp

280 Wp

285 Wp

tensione Circuito Aperto

Open circuit voltage

tension en circuit ouvert

(Voc)

38.46 V

39.36 V

39.66 V

tensione a pmax

Voltage at Pmax

Tension à la puissance nominale

(Vmp)

32.34 V

32.82 V

33,12 V

Corrente di corto circuito

Short-circuit current

Courant de court-cicuit

(isc)

9.06 V

9.14 V

9.19 V

Corrente a pmax

Current at pmax

Intensitè à la puissance nominale

(imp)

8.52 V

8.58 V

8.64 V

Efficienza modulo

Module Efficiency

Rendement surfacique

16.88%

17.19%

17.50%

*Potenze disponibili da 220-260 Wp per REVAMPING | Available powers from 220-260 Wp for REVAMPING

sunergsolar.com

page - 15
