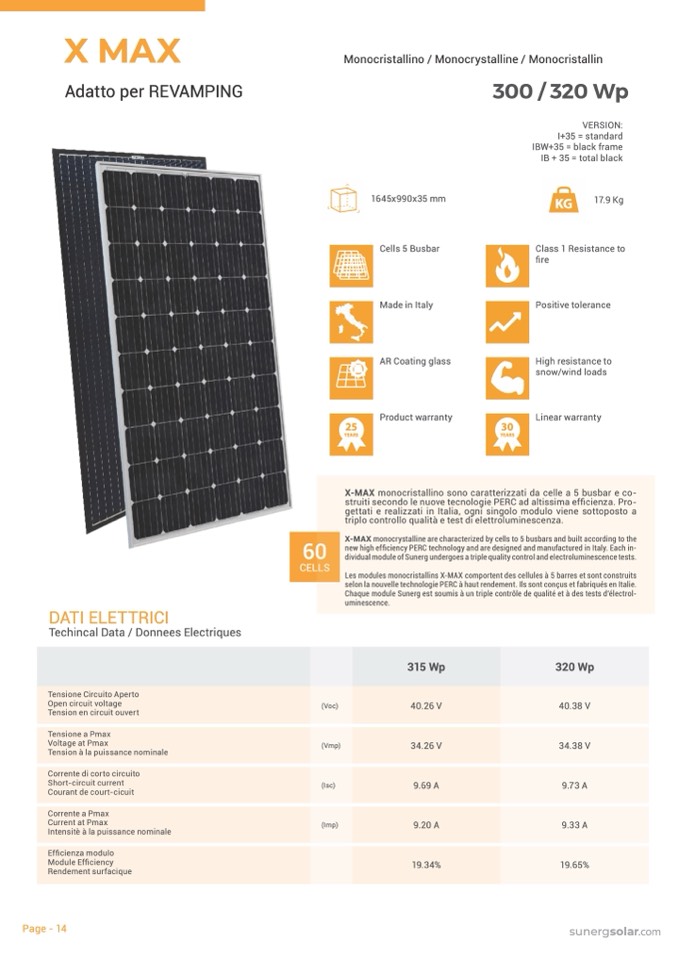

X MAX

Adatto per REVAMPING

monocristallino / monocrystalline / monocristallin

dAti eLettriCi

Techincal Data / Donnees Electriques

25

YEARS

1645x990x35 mm

Cells 5 Busbar

made in italy

Ar Coating glass

product warranty

300 / 320 Wp

VERSION:

I+35 = standard

IBW+35 = black frame

IB + 35 = total black

KG 17.9 Kg

Class 1 resistance to

fire

positive tolerance

High resistance to

snow/wind loads

Linear warranty

30

YEARS

X-MAX monocristallino sono caratterizzati da celle a 5 busbar e co-

struiti secondo le nuove tecnologie PERC ad altissima efficienza. Pro-

gettati e realizzati in italia, ogni singolo modulo viene sottoposto a

triplo controllo qualità e test di elettroluminescenza.

X-MAX monocrystalline are characterized by cells to 5 busbars and built according to the

new high efficiency PERC technology and are designed and manufactured in Italy. Each in-

dividual module of Sunerg undergoes a triple quality control and electroluminescence tests.

CeLLS

60

Les modules monocristallins X-MAX comportent des cellules à 5 barres et sont construits

selon la nouvelle technologie PERC à haut rendement. Ils sont conçus et fabriqués en Italie.

Chaque module Sunerg est soumis à un triple contrôle de qualité et à des tests d'électrol-

uminescence.

315 Wp

320 Wp

tensione Circuito Aperto

Open circuit voltage

tension en circuit ouvert

(Voc)

40.26 V

40.38 V

tensione a pmax

Voltage at Pmax

Tension à la puissance nominale

(Vmp)

34.26 V

34.38 V

Corrente di corto circuito

Short-circuit current

Courant de court-cicuit

(isc)

9.69 A

9.73 A

Corrente a pmax

Current at pmax

Intensitè à la puissance nominale

(imp)

9.20 A

9.33 A

Efficienza modulo

Module Efficiency

Rendement surfacique

19.34%

19.65%

page - 14

sunergsolar.com
