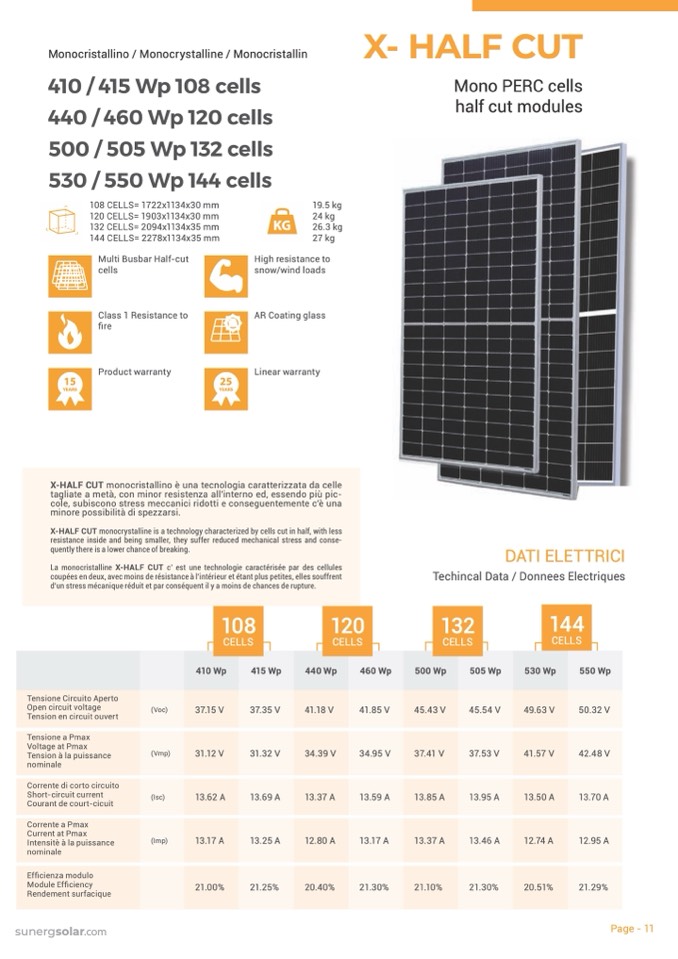

monocristallino / monocrystalline / monocristallin
X- HALF CUT
mono perC cells
half cut modules
410 / 415 Wp 108 cells
440 / 460 Wp 120 cells
500 / 505 Wp 132 cells
530 / 550 Wp 144 cells
108 CELLS= 1722x1134x30 mm
120 CELLS= 1903x1134x30 mm
132 CELLS= 2094x1134x35 mm
144 CELLS= 2278x1134x35 mm
Multi Busbar Half-cut
cells
Class 1 resistance to
fire
product warranty
KG
19.5 kg
24 kg
26.3 kg
27 kg
High resistance to
snow/wind loads
Ar Coating glass
Linear warranty
15
YEARS
25
YEARS
dAti eLettriCi
Techincal Data / Donnees Electriques
X-HALF CUT monocristallino è una tecnologia caratterizzata da celle
tagliate a metà, con minor resistenza all’interno ed, essendo più pic-
cole, subiscono stress meccanici ridotti e conseguentemente c'è una
minore possibilità di spezzarsi.
X-HALF CUT monocrystalline is a technology characterized by cells cut in half, with less
resistance inside and being smaller, they suffer reduced mechanical stress and conse-
quently there is a lower chance of breaking.
La monocristalline X-HALF CUT c’ est une technologie caractérisée par des cellules
coupées en deux, avec moins de résistance à l’intérieur et étant plus petites, elles souffrent
d’un stress mécanique réduit et par conséquent il y a moins de chances de rupture.
tensione Circuito Aperto
Open circuit voltage
tension en circuit ouvert
tensione a pmax
Voltage at Pmax
Tension à la puissance
nominale
Corrente di corto circuito
Short-circuit current
Courant de court-cicuit
Corrente a pmax
Current at pmax
Intensitè à la puissance
nominale
Efficienza modulo
Module Efficiency
Rendement surfacique
(Voc)
(Vmp)
(isc)
(imp)
410 Wp
37.15 V
31.12 V
13.62 A
13.17 A
21.00%
108
CeLLS
415 Wp
37.35 V
31.32 V
13.69 A
13.25 A
21.25%
440 Wp
41.18 V
34.39 V
13.37 A
12.80 A
20.40%
120
CeLLS
460 Wp
41.85 V
34.95 V
13.59 A
13.17 A
21.30%
50 0 Wp
45.43 V
37.41 V
13.85 A
13.37 A
21.10%
132
CeLLS
505
45.54 V
37.53 V
13.95 A
13.46 A
21.30%
Wp
530 Wp
49.63 V
41.57 V
13.50 A
12.74 A
20.51%
144
CeLLS
550
50.32 V
42.48 V
13.70 A
12.95 A
21.29%
Wp
sunergsolar.com
page - 11
