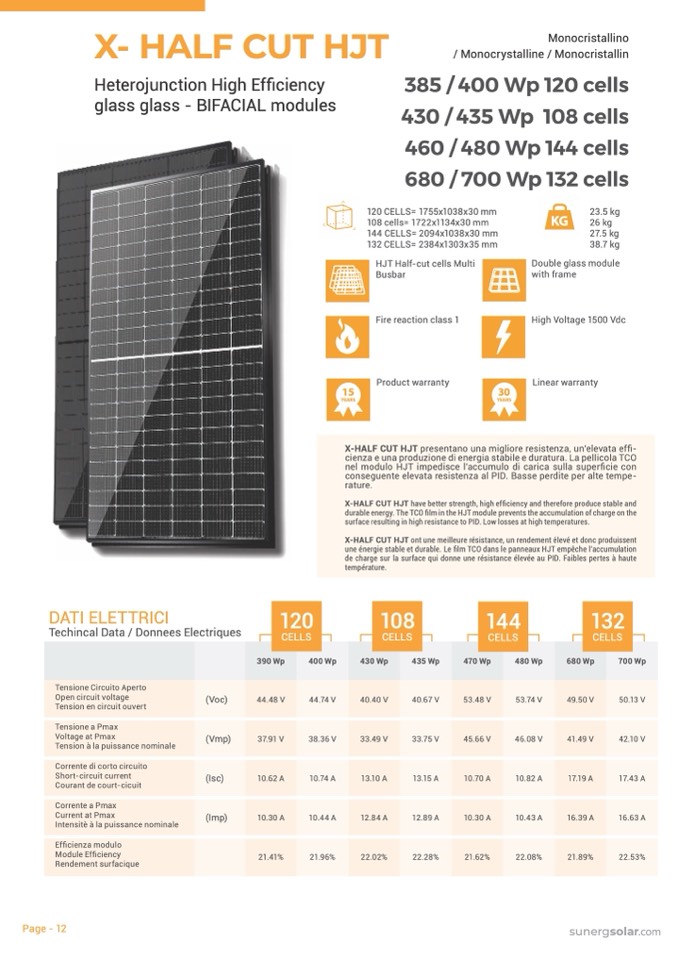

X- HALF CUT HJT
Heterojunction High Efficiency
glass glass - BiFACiAL modules
dAti eLettriCi
Techincal Data / Donnees Electriques
monocristallino
/ monocrystalline / monocristallin
385 / 400 Wp 120 cells
430 / 435 Wp 108 cells
460 / 480 Wp 144 cells
680 / 700 Wp 132 cells
120 CELLS= 1755x1038x30 mm
108 cells= 1722x1134x30 mm
144 CELLS= 2094x1038x30 mm
132 CELLS= 2384x1303x35 mm
HJT Half-cut cells Multi
Busbar
Fire reaction class 1
product warranty
23.5 kg
KG 26 kg
27.5 kg
38.7 kg
double glass module
with frame
High Voltage 1500 Vdc
Linear warranty
15
YEARS
30
YEARS
X-HALF CUT HJT presentano una migliore resistenza, un'elevata effi-
cienza e una produzione di energia stabile e duratura. La pellicola tCO
nel modulo HJT impedisce l'accumulo di carica sulla superficie con
conseguente elevata resistenza al pid. Basse perdite per alte tempe-
rature.
X-HALF CUT HJT have better strength, high efficiency and therefore produce stable and
durable energy. The TCO film in the HJT module prevents the accumulation of charge on the
surface resulting in high resistance to PID. Low losses at high temperatures.
X-HALF CUT HJT ont une meilleure résistance, un rendement élevé et donc produissent
une énergie stable et durable. Le film TCO dans le panneaux HJT empêche l’accumulation
de charge sur la surface qui donne une résistance élevée au PID. Faibles pertes à haute
température.
tensione Circuito Aperto
Open circuit voltage
tension en circuit ouvert
tensione a pmax
Voltage at Pmax
Tension à la puissance nominale
Corrente di corto circuito
Short-circuit current
Courant de court-cicuit
Corrente a pmax
Current at pmax
Intensitè à la puissance nominale
Efficienza modulo
Module Efficiency
Rendement surfacique
(Voc)
(Vmp)
(isc)
(imp)
390 Wp
44.48 V
37.91 V
10.62 A
10.30 A
21.41%
120
CeLLS
400 Wp
44.74 V
38.36 V
10.74 A
10.44 A
21.96%
430 Wp
40.40 V
33.49 V
13.10 A
12.84 A
22.02%
108
CeLLS
435 Wp
40.67 V
33.75 V
13.15 A
12.89 A
22.28%
470 Wp
53.48 V
45.66 V
10.70 A
10.30 A
21.62%
144
CeLLS
480 Wp
53.74 V
46.08 V
10.82 A
10.43 A
22.08%
680 Wp
49.50 V
41.49 V
17.19 A
16.39 A
21.89%
132
CeLLS
700 Wp
50.13 V
42.10 V
17.43 A
16.63 A
22.53%
