RN 150
JAR-TOP
RN 155 PLUS
RN 160 PRO
RN 180
SOLENOIDS
PRESSURE REGULATOR

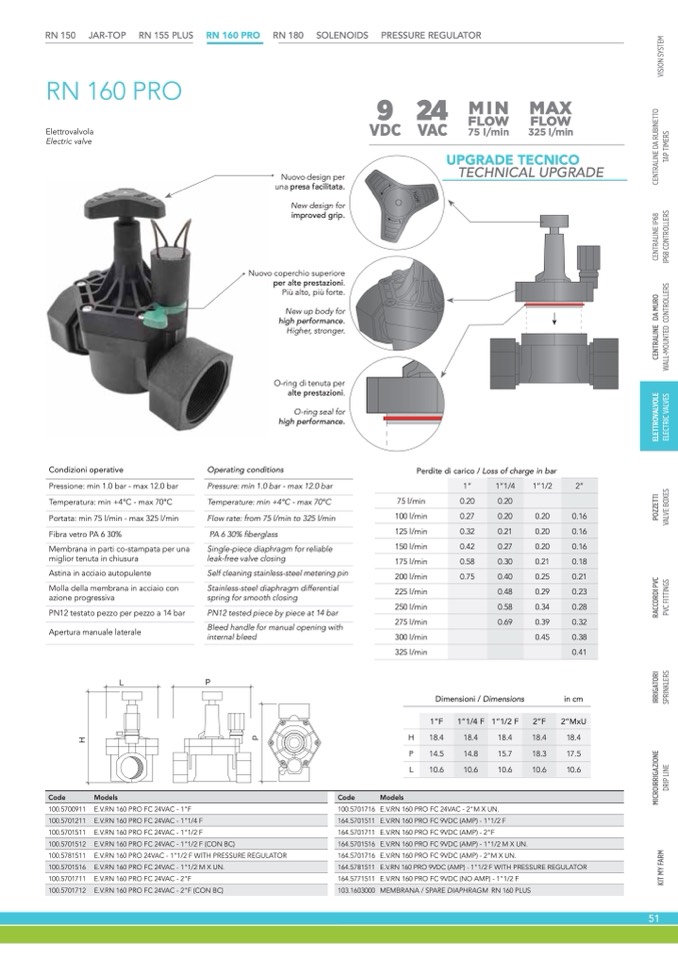

RN 160 PRO
Elettrovalvola
Electric valve
MIN MAX
FLOW
FLOW
75 l/min
325 l/min
UPGRADE TECNICO
TECHNICAL UPGRADE
N
o
u o
Nuovo design per
una presa facilitata.
New design for
improved grip.
N
o coperchio superiore
v
u o v
per alte prestazioni.
Più alto, più forte.
New up body for
high performance.
Higher, stronger.
O-ring di tenuta per
alte prestazioni.
O-ring seal for
high performance.
Condizioni operative
Pressione: min 1.0 bar - max 12.0 bar
Temperatura: min +4°C - max 70°C
Portata: min 75 l/min - max 325 l/min
Fibra vetro PA 6 30%
Membrana in parti co-stampata per una
miglior tenuta in chiusura
Astina in acciaio autopulente
Molla della membrana in acciaio con
azione progressiva
PN12 testato pezzo per pezzo a 14 bar
Apertura manuale laterale
Operating conditions
Pressure: min 1.0 bar - max 12.0 bar
Temperature: min +4°C - max 70°C
Flow rate: from 75 l/min to 325 l/min
PA 6 30% fiberglass
Single-piece diaphragm for reliable
leak-free valve closing
Self cleaning stainless-steel metering pin
Stainless-steel diaphragm differential
spring for smooth closing
PN12 tested piece by piece at 14 bar
Bleed handle for manual opening with
internal bleed
Perdite di carico / Loss of charge in bar
75 l/min
1”
1”1/4
1”1/2
2”
0.20
0.20
0.27
0.20
0.20
0.16
0.32
0.21
0.20
0.16
0.42
0.27
0.20
0.16
0.58
0.30
0.21
0.18
0.75
0.40
0.25
0.21
0.48
0.29
0.23
0.58
0.34
0.28
0.69
0.39
0.32
0.45
0.38
0.41
L
P
E.V.RN 160 PRO FC 24VAC - 1"F
E.V.RN 160 PRO FC 24VAC - 1"1/2 F
E.V.RN 160 PRO 24VAC - 1"1/2 F WITH PRESSURE REGULATOR
E.V.RN 160 PRO FC 24VAC - 2"F
100 l/min
125 l/min
150 l/min
175 l/min
200 l/min
225 l/min
250 l/min
275 l/min
300 l/min
325 l/min
H
P
L
Dimensioni / Dimensions
in cm
1”F
1”1/4 F
1”1/2 F
2”F
2”MxU
18.4
18.4
18.4
18.4
18.4
14.5
14.8
15.7
18.3
17.5
10.6
10.6
10.6
10.6
10.6
Code
Models
Code
Models
100.5700911
100.5701511
100.5781511
100.5701711
100.5701716
164.5701711
164.5701716
164.5771511
E.V.RN 160 PRO FC 24VAC - 2"M X UN.
E.V.RN 160 PRO FC 9VDC (AMP) - 2"F
E.V.RN 160 PRO FC 9VDC (AMP) - 2"M X UN.
E.V.RN 160 PRO FC 9VDC (NO AMP) - 1"1/2 F
100.5701211
E.V.RN 160 PRO FC 24VAC - 1"1/4 F
164.5701511
E.V.RN 160 PRO FC 9VDC (AMP) - 1"1/2 F
100.5701512
E.V.RN 160 PRO FC 24VAC - 1"1/2 F (CON BC)
164.5701516
E.V.RN 160 PRO FC 9VDC (AMP) - 1"1/2 M X UN.
100.5701516
E.V.RN 160 PRO FC 24VAC - 1"1/2 M X UN.
164.5781511
E.V.RN 160 PRO 9VDC (AMP) - 1"1/2 F WITH PRESSURE REGULATOR
100.5701712
E.V.RN 160 PRO FC 24VAC - 2"F (CON BC)
103.1603000
MEMBRANA / SPARE DIAPHRAGM RN 160 PLUS
