3/4”
1”
1” MxU
0.30
0.25
0.35
0.30
0.25
0.35
0.30
0.25
0.35
0.30
0.25
0.35
0.37
0.28
0.42
0.42
0.32
0.47
0.52
0.35
0.57
0.62
0.40
0.67
0.75
0.47
0.80
3/4”M
1”M
1”F
1”MxU
11.5
11.5
11.5
11.5
13.1
13.1
13.1
13.9
8.1
8.1
8.1
8.1
Code
Models
Code
Models
100.1580911
E.V.RN 155 PLUS FC 24VAC - 1"F
164.1580911
E.V.RN 155 PLUS FC 9VDC (AMP) - 1"F
100.1560916
E.V.RN 155 PLUS FC 24VAC - 1"M x UN.
164.1560916
E.V.RN 155 PLUS FC 9VDC (AMP) - 1"M x UN.
103.1563000
MEMBRANA / SPARE DIAPHRAGM RN 155 PLUS
RN 150
JAR-TOP
RN 155 PLUS
RN 160 PRO
RN 180
SOLENOIDS
PRESSURE REGULATOR

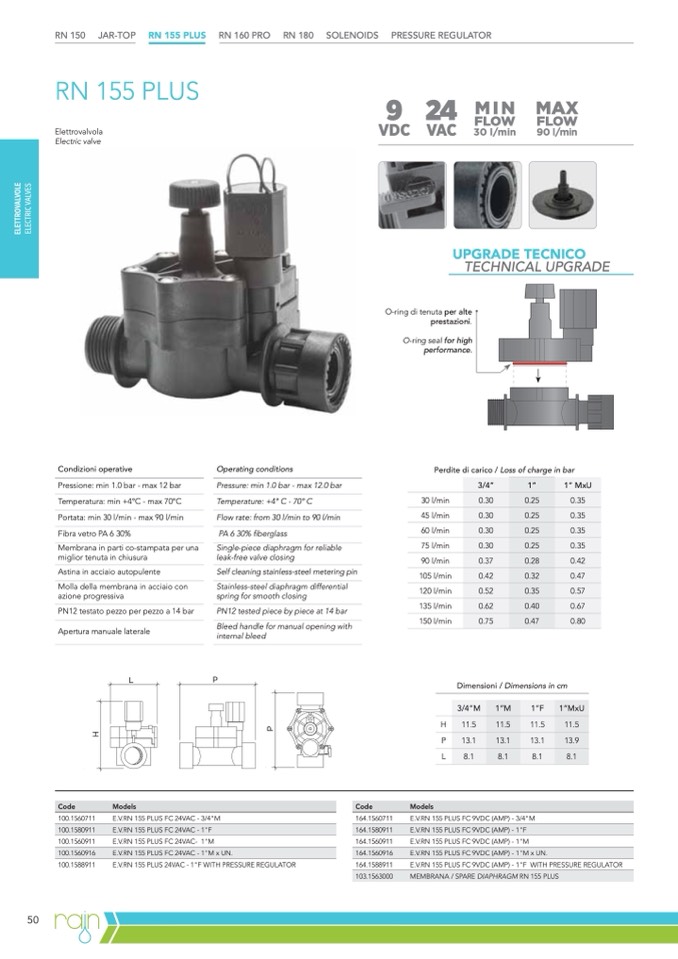

RN 155 PLUS
Elettrovalvola
Electric valve
MIN MAX
FLOW
FLOW
30 l/min
90 l/min
UPGRADE TECNICO
TECHNICAL UPGRADE
O-ring di tenuta per alte
prestazioni.
O-ring seal for high
performance.
Perdite di carico / Loss of charge in bar
30 l/min
45 l/min
60 l/min
75 l/min
90 l/min
105 l/min
120 l/min
135 l/min
150 l/min
Dimensioni / Dimensions in cm
H
P
L
Condizioni operative
Pressione: min 1.0 bar - max 12 bar
Temperatura: min +4°C - max 70°C
Portata: min 30 l/min - max 90 l/min
Fibra vetro PA 6 30%
Membrana in parti co-stampata per una
miglior tenuta in chiusura
Astina in acciaio autopulente
Molla della membrana in acciaio con
azione progressiva
PN12 testato pezzo per pezzo a 14 bar
Apertura manuale laterale
Operating conditions
Pressure: min 1.0 bar - max 12.0 bar
Temperature: +4° C - 70° C
Flow rate: from 30 l/min to 90 l/min
PA 6 30% fiberglass
Single-piece diaphragm for reliable
leak-free valve closing
Self cleaning stainless-steel metering pin
Stainless-steel diaphragm differential
spring for smooth closing
PN12 tested piece by piece at 14 bar
Bleed handle for manual opening with
internal bleed
100.1560711
100.1560911
100.1588911
L
P
E.V.RN 155 PLUS FC 24VAC - 3/4"M
E.V.RN 155 PLUS FC 24VAC- 1"M
E.V.RN 155 PLUS 24VAC - 1"F WITH PRESSURE REGULATOR
164.1560711
164.1560911
164.1588911
E.V.RN 155 PLUS FC 9VDC (AMP) - 3/4"M
E.V.RN 155 PLUS FC 9VDC (AMP) - 1"M
E.V.RN 155 PLUS FC 9VDC (AMP) - 1"F WITH PRESSURE REGULATOR
