2”
3”
0.07
0.05
0.09
0.07
0.12
0.09
0.14
0.12
0.16
0.14
0.19
0.16
0.25
0.18
0.31
0.23
0.38
0.28
0.47
0.35
3”M
3”F
2"F
25.0
25.0
25.0
24.0
25.3
25.3
17.0
17.0
17.0
Code
Models
Code
Models
100.1882510
E.V.RN 180 FC 24VAC - 2"F WITH PRESSURE REGULATOR
164.1882510
E.V.RN 180 FC 9VDC (AMP) - 2"F WITH PRESSURE REGULATOR
100.1883410
E.V.RN 180 FC 24VAC - 3"F WITH PRESSURE REGULATOR
164.1883410
E.V.RN 180 FC 9VDC (AMP) - 3"F WITH PRESSURE REGULATOR
103.1803000
MEMBRANA / SPARE DIAPHRAGM RN 180
RN 150
JAR-TOP
RN 155 PLUS
RN 160 PRO
RN 180
SOLENOIDS
PRESSURE REGULATOR

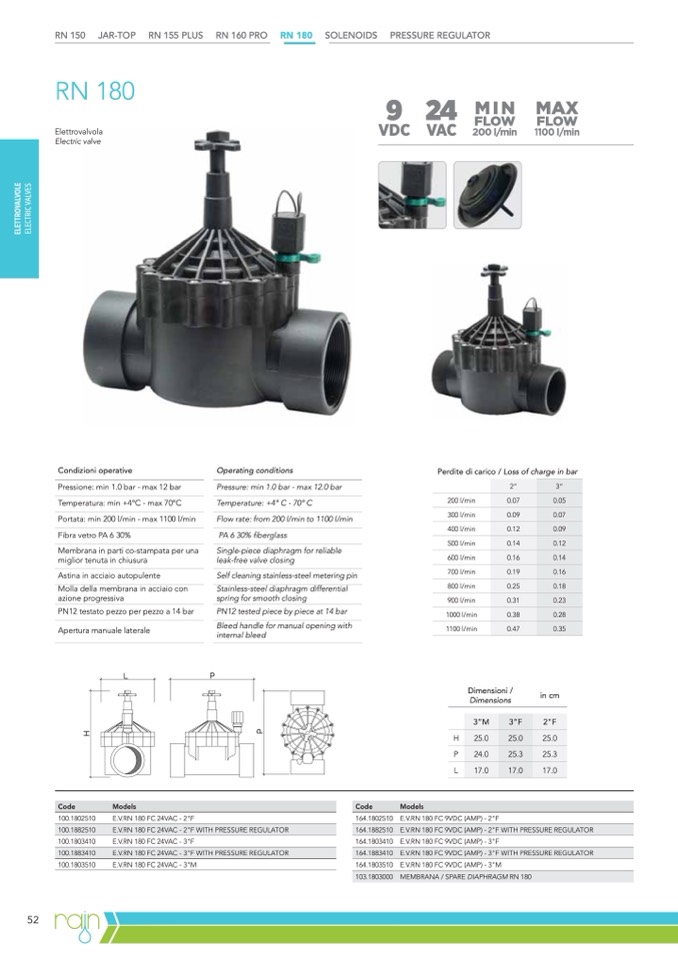

RN 180
Elettrovalvola
Electric valve
MIN MAX
FLOW
FLOW
200 l/min
1100 l/min
Condizioni operative
Pressione: min 1.0 bar - max 12 bar
Temperatura: min +4°C - max 70°C
Portata: min 200 l/min - max 1100 l/min
Fibra vetro PA 6 30%
Membrana in parti co-stampata per una
miglior tenuta in chiusura
Astina in acciaio autopulente
Molla della membrana in acciaio con
azione progressiva
PN12 testato pezzo per pezzo a 14 bar
Apertura manuale laterale
Operating conditions
Pressure: min 1.0 bar - max 12.0 bar
Temperature: +4° C - 70° C
Flow rate: from 200 l/min to 1100 l/min
PA 6 30% fiberglass
Single-piece diaphragm for reliable
leak-free valve closing
Self cleaning stainless-steel metering pin
Stainless-steel diaphragm differential
spring for smooth closing
PN12 tested piece by piece at 14 bar
Bleed handle for manual opening with
internal bleed
Perdite di carico / Loss of charge in bar
200 l/min
L
P
E.V.RN 180 FC 24VAC - 2"F
E.V.RN 180 FC 24VAC - 3"F
E.V.RN 180 FC 24VAC - 3"M
300 l/min
400 l/min
500 l/min
600 l/min
700 l/min
800 l/min
900 l/min
1000 l/min
1100 l/min
Dimensioni /
Dimensions
H
P
L
in cm
100.1802510
100.1803410
100.1803510
164.1802510
164.1803410
164.1803510
E.V.RN 180 FC 9VDC (AMP) - 2"F
E.V.RN 180 FC 9VDC (AMP) - 3"F
E.V.RN 180 FC 9VDC (AMP) - 3"M
