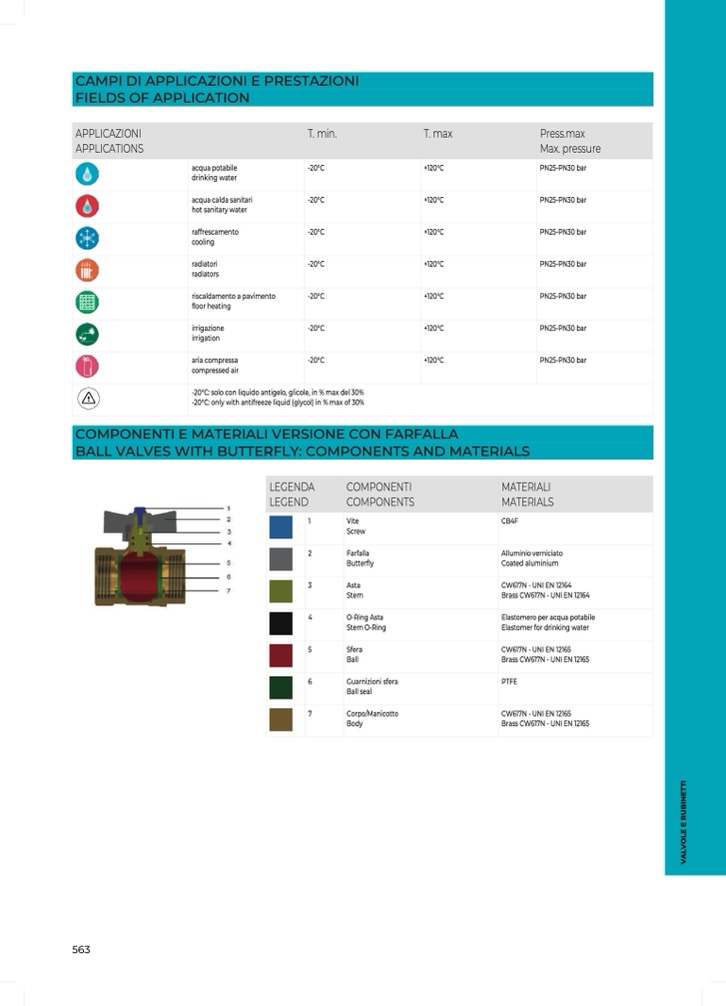

CAMPI DI APPLICAZIONI E PRESTAZIONI

FIELDS OF APPLICATION

APPLICAZIONI

APPLICATIONS

T. min.

T. max

Press.max

Max. pressure

acqua potabile

drinking water

-20°C

+120°C

PN25-PN30 bar

acqua calda sanitari

hot sanitary water

-20°C

+120°C

PN25-PN30 bar

raffrescamento

cooling

-20°C

+120°C

PN25-PN30 bar

radiatori

radiators

-20°C

+120°C

PN25-PN30 bar

riscaldamento a pavimento

floor heating

-20°C

+120°C

PN25-PN30 bar

irrigazione

irrigation

-20°C

+120°C

PN25-PN30 bar

aria compressa

compressed air

-20°C

+120°C

PN25-PN30 bar

-20°C: solo con liquido antigelo, glicole, in %

max del 30%

-20°C: only with antifreeze liquid (glycol) in %

max of 30%

COMPONENTI E MATERIALI VERSIONE CON FARFALLA

BALL VALVES WITH BUTTERFLY: COMPONENTS AND MATERIALS

LEGENDA

LEGEND

COMPONENTI

COMPONENTS

MATERIALI

MATERIALS

1

Vite

Screw

CB4F

2

Farfalla

Butterfly

Alluminio verniciato

Coated aluminium

3

Asta

Stem

CW617N

- UNI EN

12164

Brass CW617N

- UNI EN

12164

4

O-Ring Asta

Stem

O-Ring

Elastomero per acqua potabile

Elastomer for drinking water

5

Sfera

Ball

CW617N

- UNI EN

12165

Brass CW617N

- UNI EN

12165

6

Guarnizioni sfera

Ball seal

PTFE

7

Corpo/Manicotto

Body

CW617N

- UNI EN

12165

Brass CW617N

- UNI EN

12165
