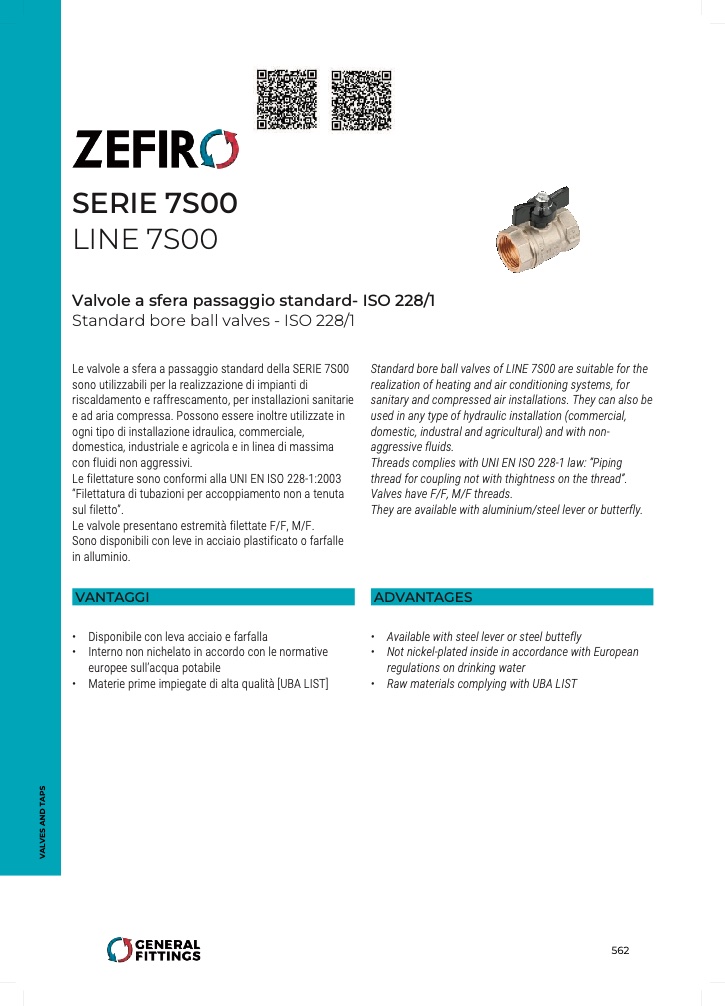

SERIE 7S00

LINE 7S00

Valvole a sfera passaggio standard- ISO 228/1

Standard bore ball valves - ISO 228/1

Le valvole a sfera a passaggio standard della SERIE 7S00

sono utilizzabili per la realizzazione di impianti di

riscaldamento e raffrescamento, per installazioni sanitarie

e ad aria compressa. Possono essere inoltre utilizzate in

ogni tipo di installazione idraulica, commerciale,

domestica, industriale e agricola e in linea di massima

con fluidi non aggressivi.

Le filettature sono conformi alla UNI EN ISO 228-1:2003

“Filettatura di tubazioni per accoppiamento non a tenuta

sul filetto”.

Le valvole presentano estremità filettate F/F, M/F.

Sono disponibili con leve in acciaio plastificato o farfalle

in alluminio.

VANTAGGI

• Disponibile con leva acciaio e farfalla

• Interno non nichelato in accordo con le normative

europee sull’acqua potabile

• Materie prime impiegate di alta qualità [UBA LIST]

Standard bore ball valves of LINE 7S00 are suitable for the

realization of heating and air conditioning systems, for

sanitary and compressed air installations. They can also be

used in any type of hydraulic installation (commercial,

domestic, industral and agricultural) and with non-

aggressive fluids.

Threads complies with UNI EN ISO 228-1 law: “Piping

thread for coupling not with thightness on the thread”.

Valves have F/F, M/F threads.

They are available with aluminium/steel lever or butterfly.

ADVANTAGES

• Available with steel lever or steel buttefly

• Not nickel-plated inside in accordance with European

regulations on drinking water

• Raw materials complying with UBA LIST

562
