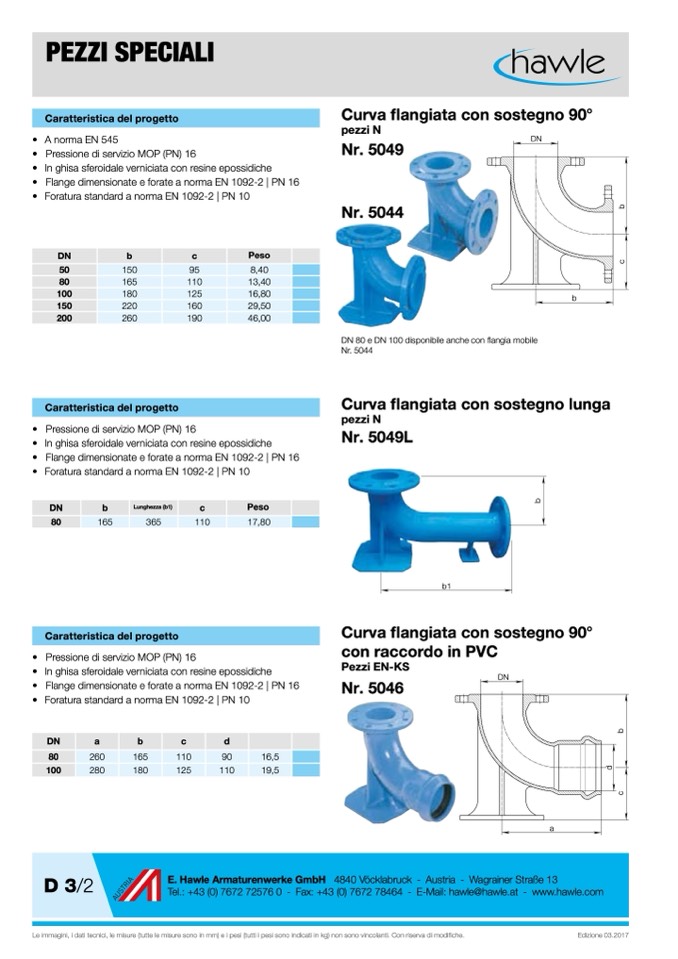

PEZZI SPECIALI

Caratteristica del progetto

• A norma EN 545

• Pressione di servizio MOP (PN) 16

• In ghisa sferoidale verniciata con resine epossidiche

• Flange dimensionate e forate a norma EN 1092-2 | PN 16

• Foratura standard a norma EN 1092-2 | PN 10

Curva flangiata con sostegno 90°

pezzi N

Nr. 5049

Nr. 5044

DN

DN

b

c

Peso

50

150

95

8,40

80

165

110

13,40

100

180

125

16,80

150

220

160

29,50

200

260

190

46,00

b

Caratteristica del progetto

• Pressione di servizio MOP (PN) 16

• In ghisa sferoidale verniciata con resine epossidiche

• Flange dimensionate e forate a norma EN 1092-2 | PN 16

• Foratura standard a norma EN 1092-2 | PN 10

Curva flangiata con sostegno lunga

pezzi N

Nr. 5049L

DN 80 e DN 100 disponibile anche con flangia mobile

Nr. 5044

DN

b

Lunghezza (b1)

c

Peso

80

165

365

110

17,80

b1

Caratteristica del progetto

• Pressione di servizio MOP (PN) 16

• In ghisa sferoidale verniciata con resine epossidiche

• Flange dimensionate e forate a norma EN 1092-2 | PN 16

• Foratura standard a norma EN 1092-2 | PN 10

Curva flangiata con sostegno 90°

con raccordo in PVC

Pezzi EN-KS

Nr. 5046

DN

DN

a

b

c

d

80

260

165

110

90

16,5

100

280

180

125

110

19,5

Le immagini, i dati tecnici, le misure (tutte le misure sono in mm) e i pesi (tutti i pesi sono indicati in kg) non sono vincolanti. Con riserva di modifiche.

Edizione 03.2017

a

D 3/2
