FT46

4.5 bar - 21 bar

DN15, DN20 and DN25

DN15 shown

FT46-C

4.5-21 bar

Description

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Ball float

© Copyright 2016

FT46

Stainless Steel

Ball Float Steam Traps (DN15 to DN50)

TI-P143-01

ST Issue 11

FT46

DN15 to DN50

32 bar

5.5.72

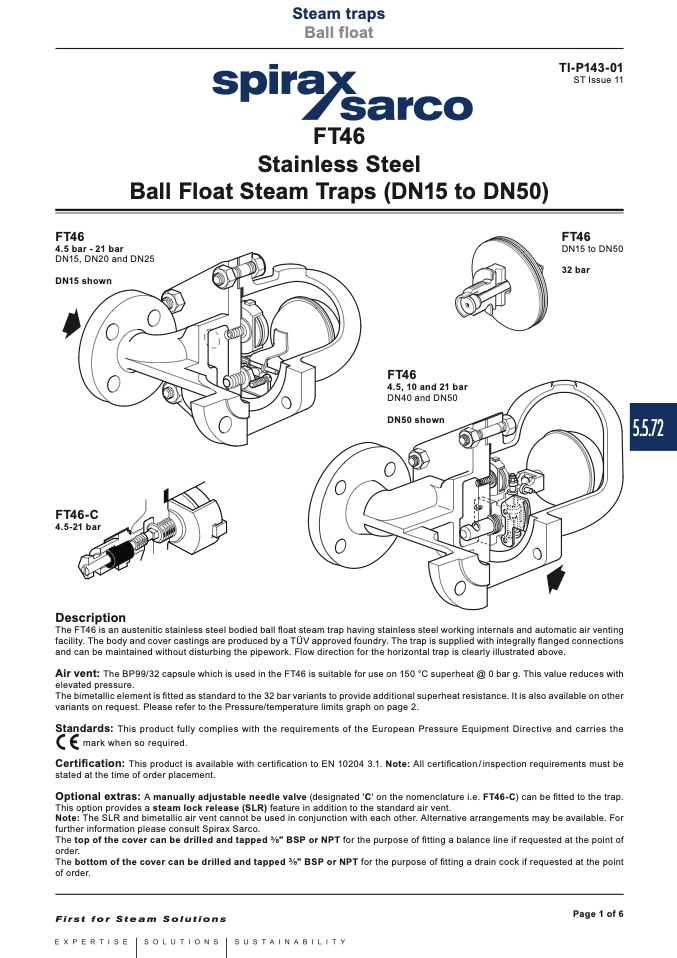

The FT46 is an austenitic stainless steel bodied ball float steam trap having stainless steel working internals and automatic air venting

facility. The body and cover castings are produced by a TÜV approved foundry. The trap is supplied with integrally flanged connections

and can be maintained without disturbing the pipework. Flow direction for the horizontal trap is clearly illustrated above.

Air vent: The BP99/32 capsule which is used in the FT46 is suitable for use on 150 °C superheat @ 0 bar g. This value reduces with

elevated pressure.

The bimetallic element is fitted as standard to the 32 bar variants to provide additional superheat resistance. It is also available on other

variants on request. Please refer to the Pressure/temperature limits graph on page 2.

Standards: This product fully complies with the requirements of the European Pressure Equipment Directive and carries the

mark when so required.

Certification: This product is available with certification to EN 10204 3.1. Note: All certification/inspection requirements must be

stated at the time of order placement.

Optional extras: A manually adjustable needle valve (designated 'C' on the nomenclature i.e. FT46-C) can be fitted to the trap.

This option provides a steam lock release (SLR) feature in addition to the standard air vent.

Note: The SLR and bimetallic air vent cannot be used in conjunction with each other. Alternative arrangements may be available. For

further information please consult Spirax Sarco.

The top of the cover can be drilled and tapped " BSP or NPT for the purpose of fitting a balance line if requested at the point of

order.

The bottom of the cover can be drilled and tapped " BSP or NPT for the purpose of

fitting a drain cock if requested at the point

of order.

FT46

4.5, 10 and 21 bar

DN40 and DN50

DN50 shown
