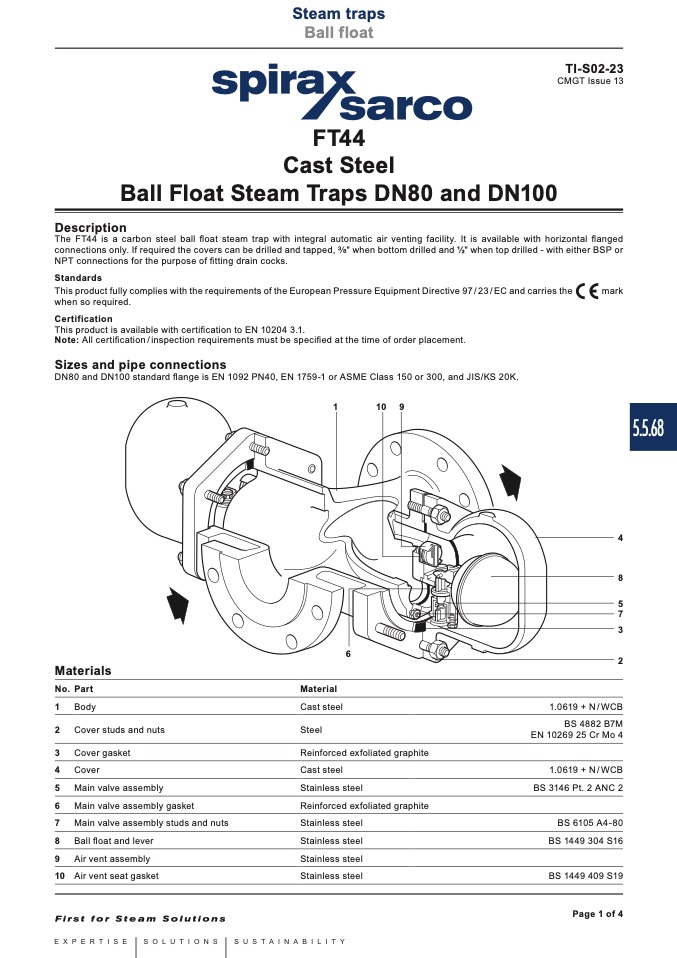

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

Ball float

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-S02-23

CMGT Issue 13

FT44

Cast Steel

Ball Float Steam Traps DN80 and DN100

Description

The FT44 is a carbon steel ball float steam trap with integral automatic air venting facility. It is available with horizontal flanged

connections only. If required the covers can be drilled and tapped, " when bottom drilled and 1⁄2" when top drilled - with either BSP or

NPT connections for the purpose of fitting drain cocks.

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC and carries the

mark

when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be specified at the time of order placement.

Sizes and pipe connections

DN80 and DN100 standard flange is EN 1092 PN40, EN 1759-1 or ASME Class 150 or 300, and JIS/KS 20K.

1

1

0

9

Materials

No. Part

1 Body

2 Cover studs and nuts

3 Cover gasket

4 Cover

5 Main valve assembly

6 Main valve assembly gasket

7 Main valve assembly studs and nuts

8 Ball float and lever

9 Air vent assembly

10 Air vent seat gasket

6

Reinforced exfoliated graphite

Cast steel

Stainless steel

Reinforced exfoliated graphite

Stainless steel

Stainless steel

Stainless steel

Stainless steel

4

8

5

7

3

2

1.0619 + N / WCB

BS 4882 B7M

EN 10269 25 Cr Mo 4

1.0619 + N / WCB

BS 3146 Pt. 2 ANC 2

BS 6105 A4-80

BS 1449 304 S16

BS 1449 409 S19

Material

Cast steel

Steel

Page 1 of 4

5.5.68
