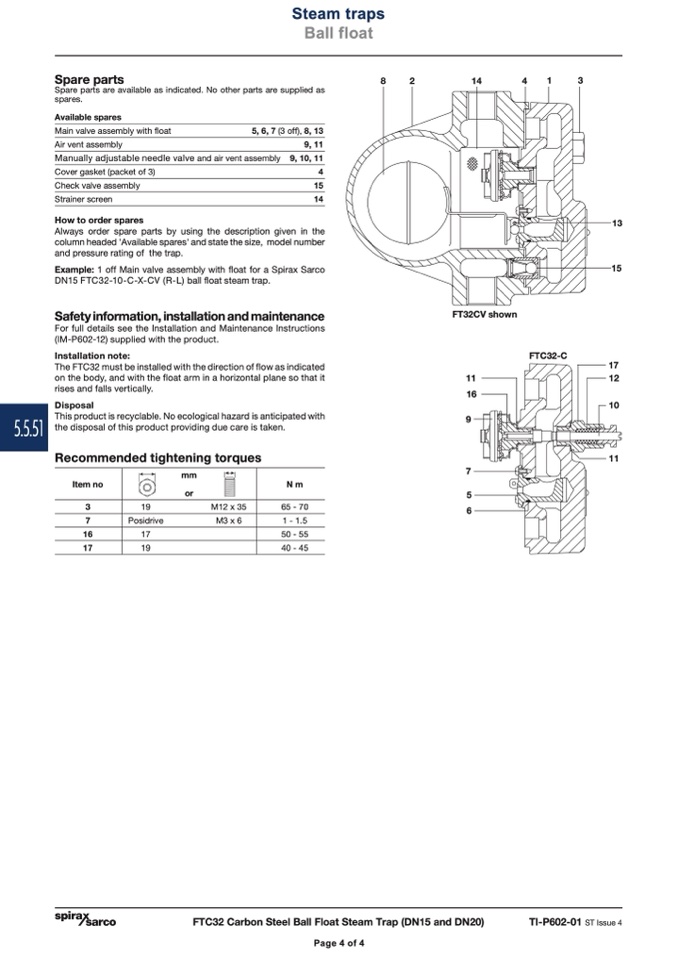

Spare parts

Spare parts are available as indicated. No other parts are supplied as

spares.

Available spares

Main valve assembly with float

5, 6, 7 (3 off), 8, 13

8

2

14

4

1

3

Air vent assembly

Manually adjustable needle valve and air vent assembly

Cover gasket (packet of 3)

Check valve assembly

Strainer screen

How to order spares

9, 11

9, 10, 11

4

15

14

Always order spare parts by using the description given in the

column headed 'Available spares' and state the size, model number

and pressure rating of the trap.

Example: 1 off Main valve assembly with float for a Spirax Sarco

DN15 FTC32-10-C-X-CV (R-L) ball float steam trap.

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P602-12) supplied with the product.

Installation note:

The FTC32 must be installed with the direction of flow as indicated

on the body, and with the float arm in a horizontal plane so that it

rises and falls vertically.

Disposal

5.5.51

This product is recyclable. No ecological hazard is anticipated with

the disposal of this product providing due care is taken.

FT32CV shown

11

16

9

7

5

6

FTC32-C

13

15

17

12

10

11

Recommended tightening torques

Item no

3

19

7

Posidrive

16

17

17

19

mm

or

N m

65 - 70

1 - 1.5

50 - 55

40 - 45

M12 x 35

M3 x 6

Steam traps

Ball float

Page 4 of 4

FTC32 Carbon Steel Ball Float Steam Trap (DN15 and DN20)

TI-P602-01 ST Issue 4

Page 4 of 4
