5.5.31

17 A/F

17 A/F

Pozidrive

17 A/F

19 A/F

13 A/F

19 A/F

M10 x 30

M4 x 6

M14 x 1.5

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P145-12) supplied with the product.

Installation note:

The FTGS14 must be installed with the direction of flow as indicated

on the body, and with the float arm in a horizontal plain so that

it rises and falls vertically. If required the flow orientation can

be changed on site by simply rotating the cover through 180°,

therefore the arrow on the name-plate must point downwards.

Disposal

This product is recyclable. No ecological hazard is anticipated with

the disposal of this product providing due care is taken.

How to order

Example: 1 off Spirax Sarco DN25 FTGS14-4.5 (L-R) ball float steam

trap with flanged EN 1092 PN16 connections and integral air vent.

Spare parts

The spare parts available are shown in solid outline. Parts drawn

in broken line are not supplied as spares.

Steam lock

release assembly

21 19 29

20

Air vent assembly

18

17

3

2

6

5

1

1

10

7

28

8

3

Main valve assembly

Note: Item 28 is required for DN25 size only

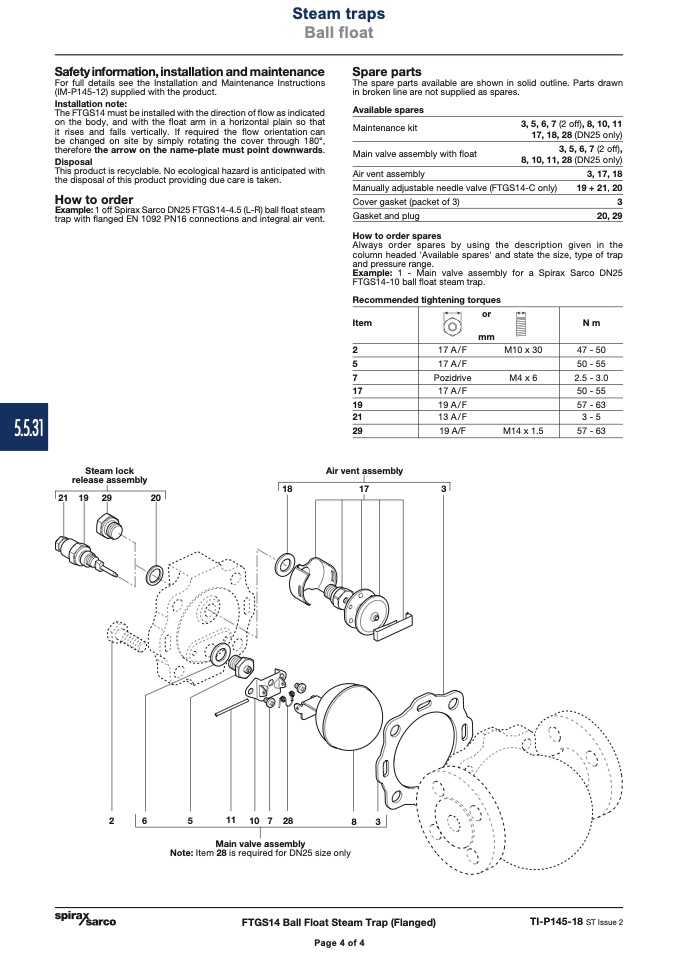

FTGS14 Ball Float Steam Trap (Flanged)

TI-P145-18 ST Issue 2

Steam traps

Ball float

Page 4 of 4

Page 4 of 4

Available spares

Maintenance kit

Main valve assembly with float

3, 5, 6, 7 (2 off), 8, 10, 11

17, 18, 28 (DN25 only)

3, 5, 6, 7 (2 off),

8, 10, 11, 28 (DN25 only)

Air vent assembly

Manually adjustable needle valve (FTGS14-C only)

Cover gasket (packet of 3)

Gasket and plug

How to order spares

3, 17, 18

19 + 21, 20

3

20, 29

Always order spares by using the description given in the

column headed 'Available spares' and state the size, type of trap

and pressure range.

Example: 1 - Main valve assembly for a Spirax Sarco DN25

FTGS14-10 ball float steam trap.

Recommended tightening torques

Item

2

5

7

17

19

21

29

or

mm

N m

47 - 50

50 - 55

2.5 - 3.0

50 - 55

57 - 63

3 - 5

57 - 63
