FTGS14 (R-L)

5.5.29

1110 6

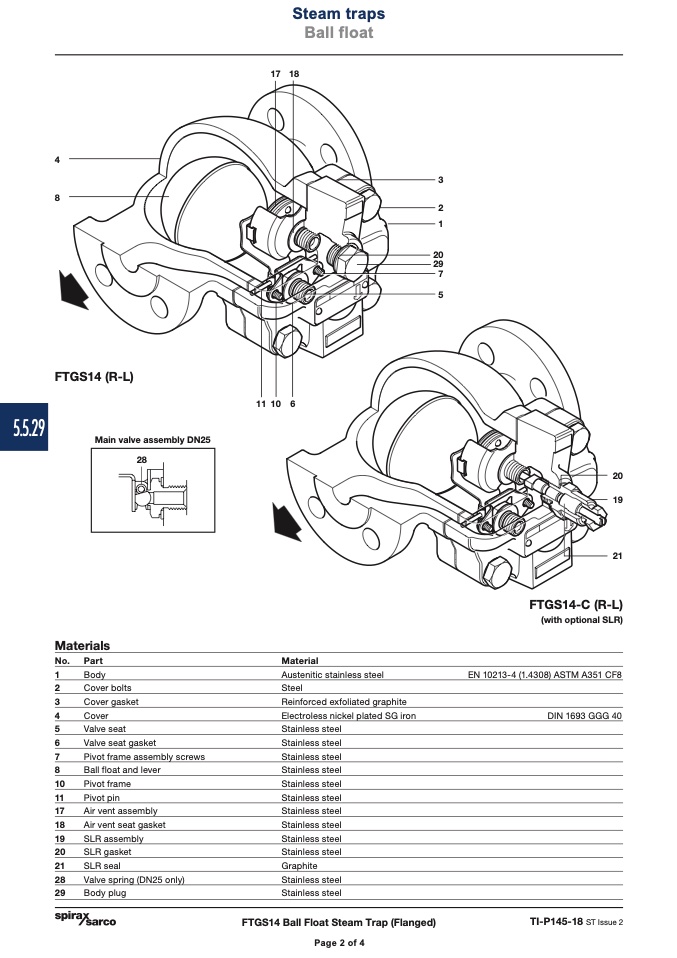

Main valve assembly DN25

28

Materials

No. Part

1

Body

2

Cover bolts

3

Cover gasket

4

Cover

5

Valve seat

6

Valve seat gasket

7

Pivot frame assembly screws

8

Ball float and lever

10

Pivot frame

11

Pivot pin

17

Air vent assembly

18

Air vent seat gasket

19

SLR assembly

20

SLR gasket

21

SLR seal

28

Valve spring (DN25 only)

29

Body plug

Material

Austenitic stainless steel

Steel

Reinforced exfoliated graphite

Electroless nickel plated SG iron

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Graphite

Stainless steel

Stainless steel

20

19

21

FTGS14-C (R-L)

(with optional SLR)

EN 10213-4 (1.4308) ASTM A351 CF8

DIN 1693 GGG 40

17 18

Steam traps

Ball float

Page 2 of 4

FTGS14 Ball Float Steam Trap (Flanged)

TI-P145-18 ST Issue 2

Page 2 of 4
