Steam traps

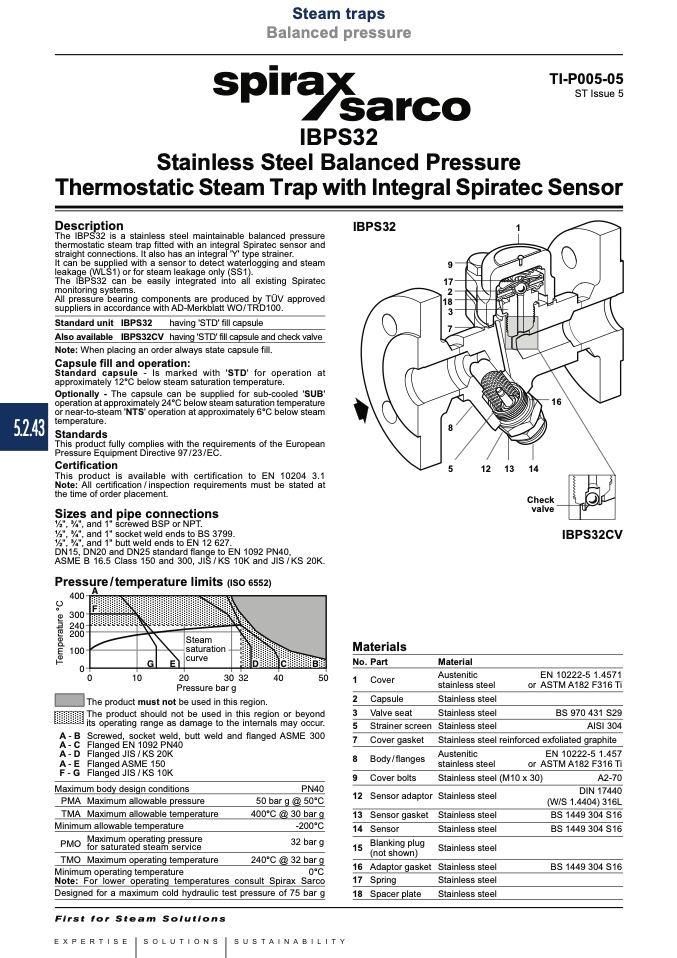

IBPS32

Stainless Steel Balanced Pressure

Thermostatic Steam Trap with Integral Spiratec Sensor

Description

IBPS32

The IBPS32 is a stainless steel maintainable balanced pressure

thermostatic steam trap fitted with an integral Spiratec sensor and

straight connections. It also has an integral 'Y' type strainer.

It can be supplied with a sensor to detect waterlogging and steam

leakage (WLS1) or for steam leakage only (SS1).

Standard unit IBPS32

having 'STD' fill capsule

Also available IBPS32CV having 'STD' fill capsule and check valve

Note: When placing an order always state capsule fill.

Capsule fill and operation:

Standard capsule - Is marked with 'STD' for operation at

approximately 12°C below steam saturation temperature.

Optionally - The capsule can be supplied for sub-cooled 'SUB'

operation at approximately 24°C below steam saturation temperature

or near-to-steam 'NTS' operation at approximately 6°C below steam

5.2.43

temperature.

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

This product is available with certification to EN 10204 3.1

Note: All certification / inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

1⁄2", 3⁄4", and 1" screwed BSP or NPT.

1⁄2", 3⁄4", and 1" socket weld ends to BS 3799.

1⁄2", 3⁄4", and 1" butt weld ends to EN 12 627.

DN15, DN20 and DN25 standard flange to EN 1092 PN40,

ASME B 16.5 Class 150 and 300, JIS / KS 10K and JIS / KS 20K.

Pressure/temperature limits (ISO 6552)

The IBPS32 can be easily integrated into all existing Spiratec

monitoring systems.

All pressure bearing components are produced by TÜV approved

suppliers in accordance with AD-Merkblatt WO/TRD100.

Standards

Certification

12 13 14

��

A - B

A-C

A-D

A-E

F-G

Maximum body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

Flanged JIS / KS 10K

(M10 x 30)

A2-70

DIN 17440

(W/S 1.4404) 316L

BS 1449 304 S16

��

1 Cover

2 Capsule

3 Valve seat

5 Strainer screen

7 Cover gasket

8 Body / flanges

9 Cover bolts

12 Sensor adaptor

13 Sensor gasket

14 Sensor

Blanking plug

(not shown)

16 Adaptor gasket

17 Spring

18 Spacer plate

Austenitic

stainless steel

Stainless steel

Austenitic

stainless steel

Stainless steel

EN 10222-5 1.4571

or ASTM A182 F316 Ti

BS 970 431 S29

AISI 304

reinforced exfoliated graphite

EN 10222-5 1.457

or ASTM A182 F316 Ti

Steam

saturation

Balanced pressure

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Materials

�

curv

�

No.Par

Material

Pressure bar g

The product must not be used in this region.

The product should not be used in this region or beyond

its operating range as damage to the internals may occur.

Screwed, socket weld, butt weld and flanged ASME 300

Flanged EN 1092 PN40

Flanged JIS / KS 20K

Flanged ASME 150

PN40

50 bar g @ 50°C

400°C @ 30 bar g

-200°C

32 bar g

240°C @ 32 bar g

0°C

Note: For lower operating temperatures consult Spirax Sarco

Designed for a maximum cold hydraulic test pressure of 75 bar g

TI-P005-05

ST Issue 5

Check

valve
