Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

Balanced pressure

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-P180-30

CMGT Issue 8

BT6-B

Sanitary

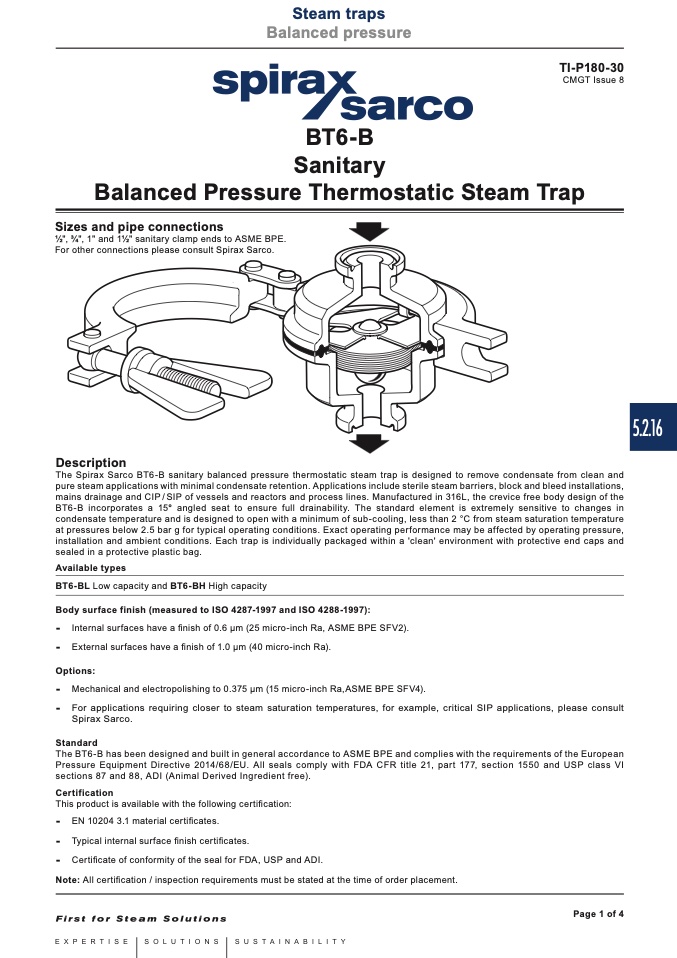

Balanced Pressure Thermostatic Steam Trap

Sizes and pipe connections

1⁄2", 3⁄4", 1" and 11⁄2" sanitary clamp ends to ASME BPE.

For other connections please consult Spirax Sarco.

Description

The Spirax Sarco BT6-B sanitary balanced pressure thermostatic steam trap is designed to remove condensate from clean and

pure steam applications with minimal condensate retention. Applications include sterile steam barriers, block and bleed installations,

mains drainage and CIP / SIP of vessels and reactors and process lines. Manufactured in 316L, the crevice free body design of the

BT6-B incorporates a 15° angled seat to ensure full drainability. The standard element is extremely sensitive to changes in

condensate temperature and is designed to open with a minimum of sub-cooling, less than 2 °C from steam saturation temperature

at pressures below 2.5 bar g for typical operating conditions. Exact operating performance may be affected by operating pressure,

installation and ambient conditions. Each trap is individually packaged within a 'clean' environment with protective end caps and

sealed in a protective plastic bag.

Available types

BT6-BL Low capacity and BT6-BH High capacity

Body surface finish (measured to ISO 4287-1997 and ISO 4288-1997):

-

Internal surfaces have a finish of 0.6 μm (25 micro-inch Ra, ASME BPE SFV2).

-

External surfaces have a finish of 1.0 μm (40 micro-inch Ra).

Options:

-

Mechanical and electropolishing to 0.375 μm (15 micro-inch Ra,ASME BPE SFV4).

- For applications requiring closer to steam saturation temperatures, for example, critical SIP applications, please consult

Spirax Sarco.

Standard

The BT6-B has been designed and built in general accordance to ASME BPE and complies with the requirements of the European

Pressure Equipment Directive 2014/68/EU. All seals comply with FDA CFR title 21, part 177, section 1550 and USP class VI

sections 87 and 88, ADI (Animal Derived Ingredient free).

Certification

This product is available with the following certification:

-

EN 10204 3.1 material certificates.

-

Typical internal surface finish certificates.

-

Certificate of conformity of the seal for FDA, USP and ADI.

Note: All certification / inspection requirements must be stated at the time of order placement.

Page 1 of 4

5.2.16
