Control valves

Pressure reducing/surplussing valves

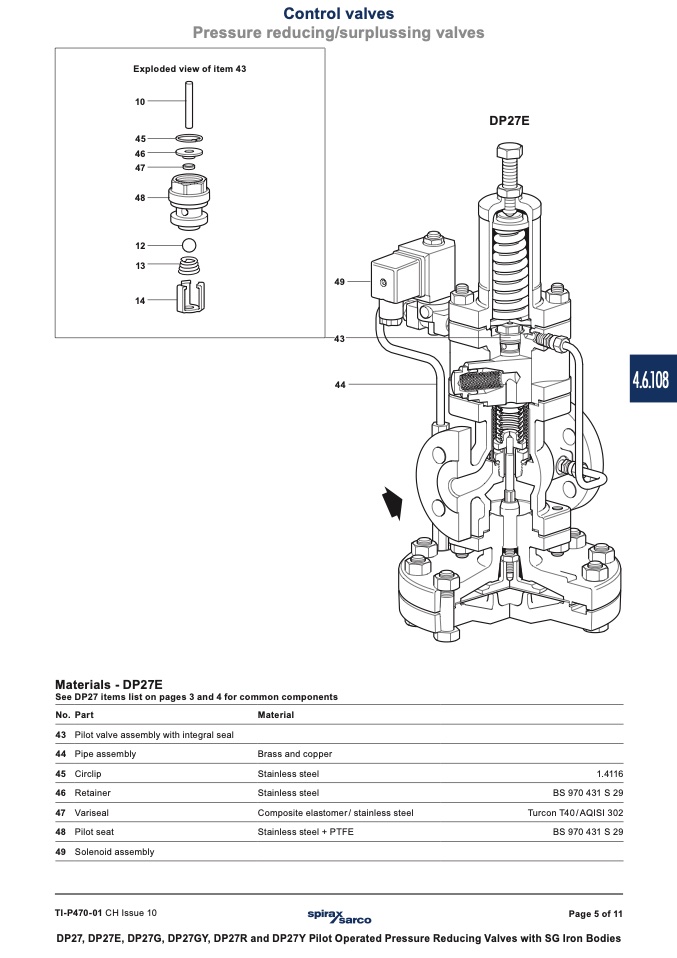

Exploded view of item 43

10

45

46

47

48

12

13

14

DP27E

Materials - DP27E

See DP27 items list on pages 3 and 4 for common components

No. Part

43 Pilot valve assembly with integral seal

44 Pipe assembly

45 Circlip

46 Retainer

47 Variseal

48 Pilot seat

49 Solenoid assembly

Material

Brass and copper

Stainless steel

Stainless steel

Composite elastomer / stainless steel

Stainless steel + PTFE

1.4116

BS 970 431 S 29

Turcon T40 / AQISI 302

BS 970 431 S 29

49

43

44

4.6.108

TI-P470-01 CH Issue 10

DP27, DP27E, DP27G, DP27GY, DP27R and DP27Y Pilot Operated Pressure Reducing Valves with SG Iron Bodies

Page 5 of 11
