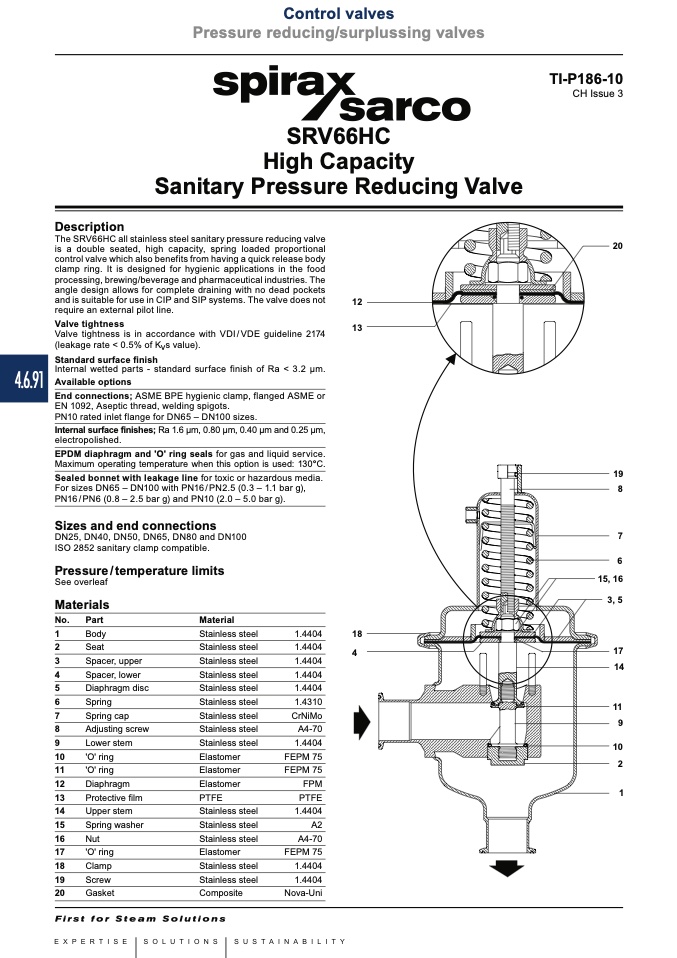

Description

The SRV66HC all stainless steel sanitary pressure reducing valve

is a double seated, high capacity, spring loaded proportional

control valve which also benefits from having a quick release body

clamp ring. It is designed for hygienic applications in the food

processing, brewing/beverage and pharmaceutical industries. The

angle design allows for complete draining with no dead pockets

and is suitable for use in CIP and SIP systems. The valve does not

require an external pilot line.

Valve tightness

20

Valve tightness is in accordance with VDI/VDE guideline 2174

(leakage rate < 0.5% of Kvs value).

4.6.91

Internal wetted parts - standard surface finish of Ra < 3.2 μm.

Available options

End connections; ASME BPE hygienic clamp, flanged ASME or

EN 1092, Aseptic thread, welding spigots.

PN10 rated inlet flange for DN65 – DN100 sizes.

Internal surface finishes; Ra 1.6 μm, 0.80 μm, 0.40 μm and 0.25 μm,

electropolished.

EPDM diaphragm and 'O' ring seals for gas and liquid service.

Maximum operating temperature when this option is used: 130°C.

Sealed bonnet with leakage line for toxic or hazardous media.

For sizes DN65 – DN100 with PN16/PN2.5 (0.3 – 1.1 bar g),

PN16/PN6 (0.8 – 2.5 bar g) and PN10 (2.0 – 5.0 bar g).

Sizes and end connections

DN25, DN40, DN50, DN65, DN80 and DN100

ISO 2852 sanitary clamp compatible.

Pressure/temperature limits

12

13

Standard surface finish

See overleaf

Materials

No. Part

1

Body

2

Seat

3

Spacer, upper

4

Spacer, lower

5

Diaphragm disc

6

Spring

7

Spring cap

8

Adjusting screw

9

Lower stem

10

'O' ring

11

'O' ring

12

Diaphragm

13

Protective film

14

Upper stem

15

Spring washer

16

Nut

17

'O' ring

18

Clamp

19

Screw

20

Gasket

19

8

7

6

15, 16

3, 5

Control valves

Pressure reducing/surplussing valves

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2012

SRV66HC

High Capacity

Sanitary Pressure Reducing Valve

Material

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Elastomer

Elastomer

Elastomer

PTFE

Stainless steel

Stainless steel

Stainless steel

Elastomer

Stainless steel

Stainless steel

Composite

Nova-Uni

1.4404

1.4404

1.4404

1.4404

1.4404

1.4310

18

4

17

14

11

9

10

2

1

CrNiMo

A4-70

1.4404

FEPM 75

FEPM 75

FPM

PTFE

1.4404

A2

A4-70

FEPM 75

1.4404

1.4404

TI-P186-10

CH Issue 3
