Control valves

Pressure reducing/surplussing valves

��

��

��

��

��

��

4.6.45

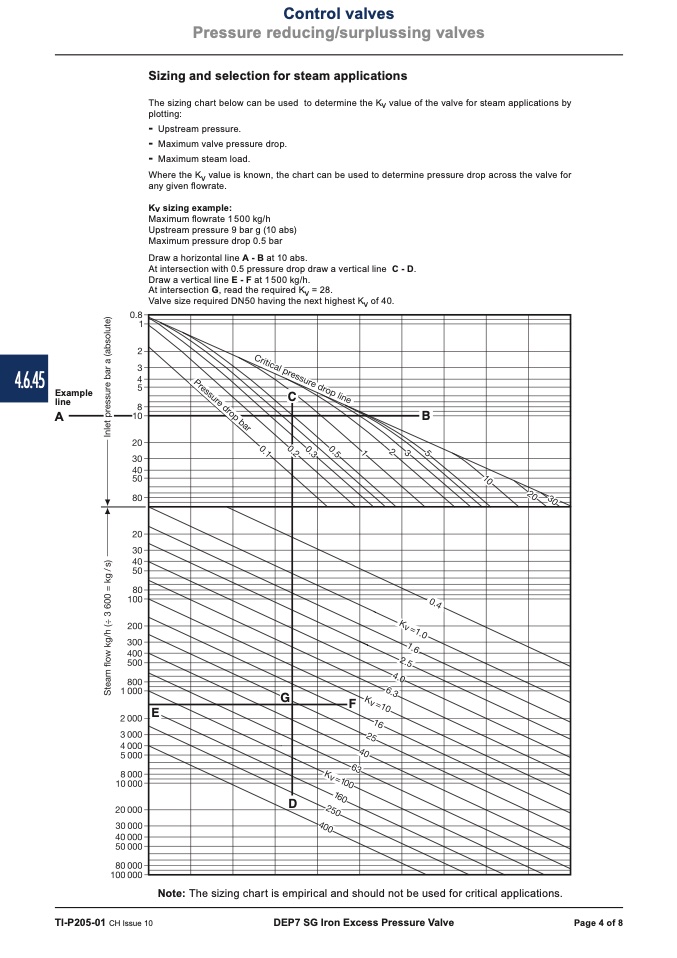

Sizing and selection for steam applications

The sizing chart below can be used to determine the Kv value of the valve for steam applications by

plotting:

-

Upstream pressure.

-

Maximum valve pressure drop.

-

Maximum steam load.

Where the Kv value is known, the chart can be used to determine pressure drop across the valve for

any given flowrate.

Kv sizing example:

Maximum flowrate 1 500 kg/h

Upstream pressure 9 bar g (10 abs)

Maximum pressure drop 0.5 bar

Draw a horizontal line A - B at 10 abs.

At intersection with 0.5 pressure drop draw a vertical line C - D.

Draw a vertical line E - F at 1500 kg/h.

At intersection G, read the required Kv = 28.

Valve size required DN50 having the next highest Kv of 40.

Example

line

A

Note: The sizing chart is empirical and should not be used for critical applications.

TI-P205-01 CH Issue 10

DEP7 SG Iron Excess Pressure Valve

Page 4 of 8
