Boiler house

Level controls

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2014

2.3.5

AI-P402-08

AB Issue 7

LCS1000

Level Control Systems - Chamber Mounted

Installation and testing

of on/off boiler water level controls in external chambers

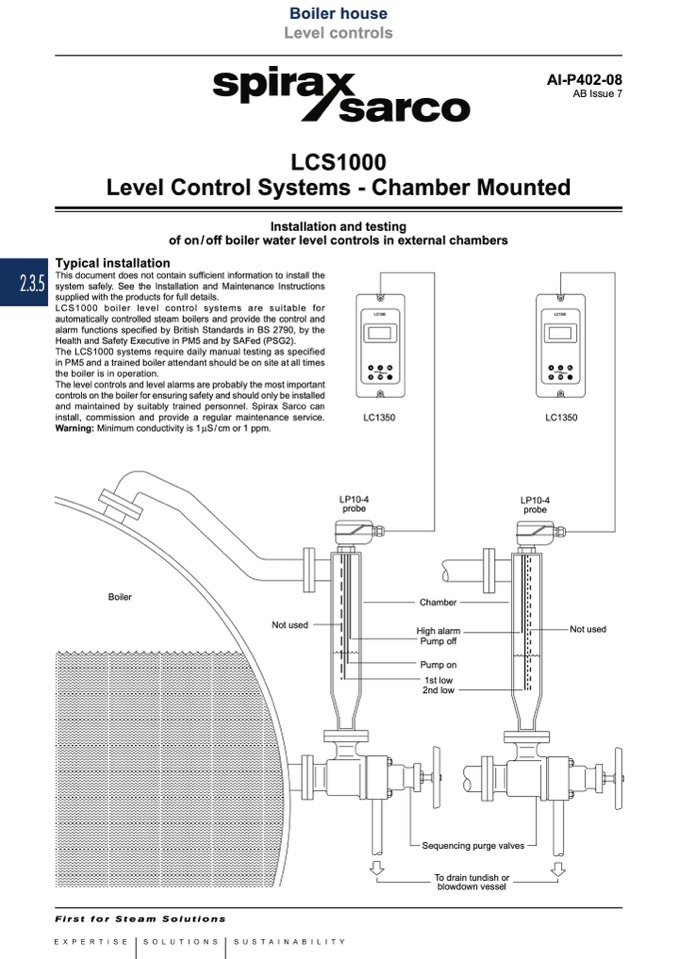

Typical installation

This document does not contain sufficient information to install the

system safely. See the Installation and Maintenance Instructions

supplied with the products for full details.

LCS1000 boiler level control systems are suitable for

automatically controlled steam boilers and provide the control and

alarm functions specified by British Standards in BS 2790, by the

Health and Safety Executive in PM5 and by SAFed (PSG2).

LC1350

LC1350

AL

OK

The LCS1000 systems require daily manual testing as specified

in PM5 and a trained boiler attendant should be on site at all times

the boiler is in operation.

The level controls and level alarms are probably the most important

controls on the boiler for ensuring safety and should only be installed

and maintained by suitably trained personnel. Spirax Sarco can

install, commission and provide a regular maintenance service.

LC1350

Warning: Minimum conductivity is 1S/cm or 1 ppm.

AL

OK

LP10-4

probe

LC1350

LP10-4

probe

Boiler

Chamber

High alarm

Pump off

Pump on

1st low

2nd low

Not used

Not used

Sequencing purge valves

To drain tundish or

blowdown vessel
