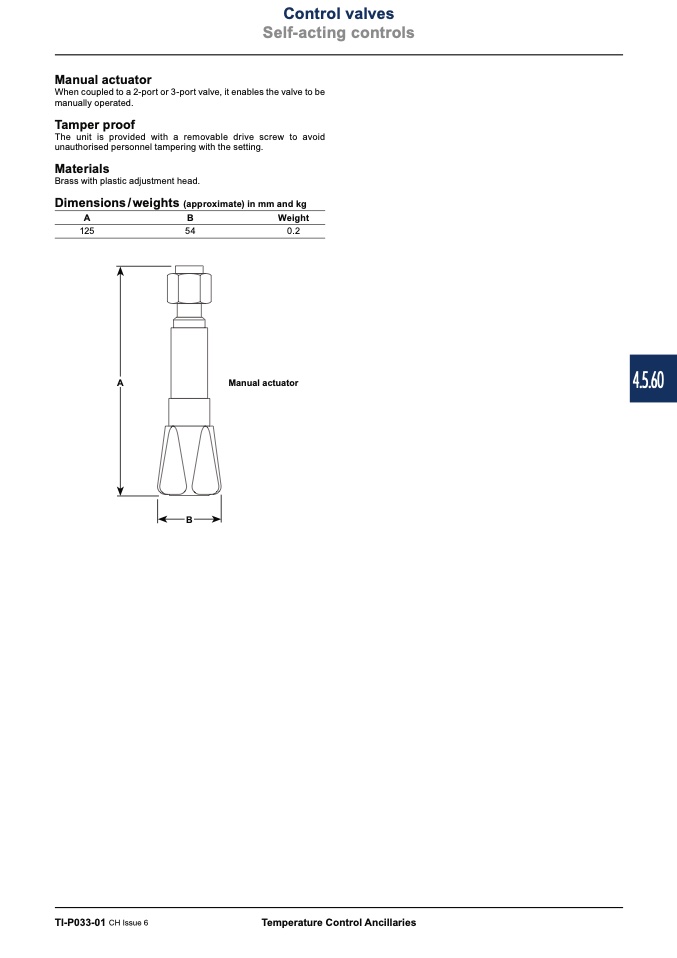

Control valves

Self-acting controls

Manual actuator

When coupled to a 2-port or 3-port valve, it enables the valve to be

manually operated.

Tamper proof

The unit is provided with a removable drive screw to avoid

unauthorised personnel tampering with the setting.

Materials

Brass with plastic adjustment head.

Dimensions/weights (approximate) in mm and kg

A

B

125

54

Weight

0.2

Manual actuator

A

TI-P033-01 CH Issue 6

Temperature Control Ancillaries

B

4.5.60
