4.5.59

Control valves

Self-acting controls

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2015

TI-P033-01

CH Issue 6

Twin

Sensor

Adaptor

Temperature Control Ancillaries

Twin

Sensor

Adaptor

Manual

Actuator

Manual

Actuator

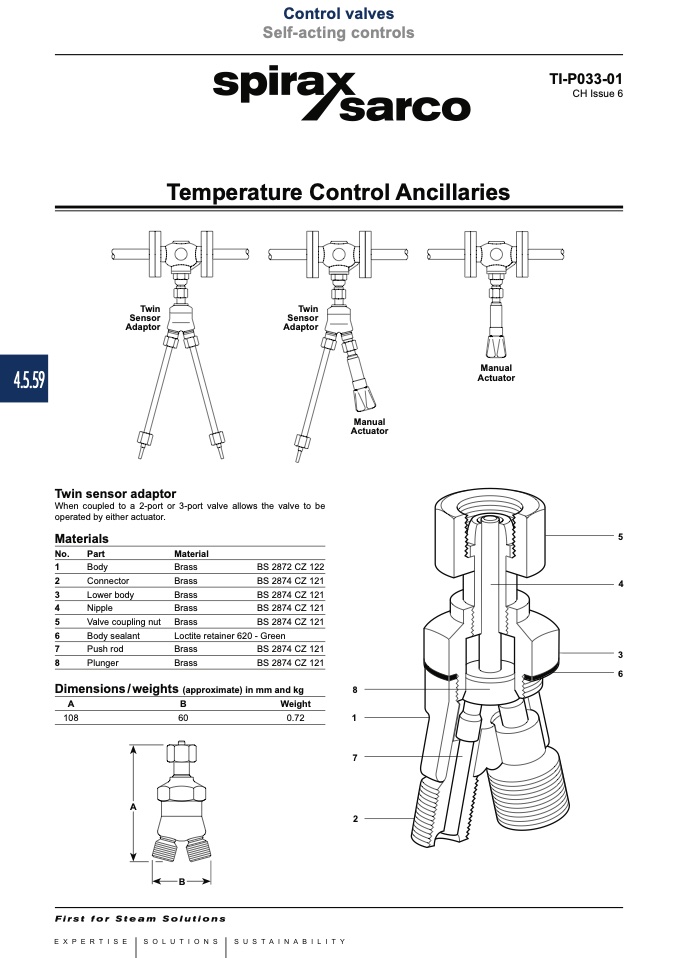

Twin sensor adaptor

When coupled to a 2-port or 3-port valve allows the valve to be

operated by either actuator.

Materials

No.

Part

1

Body

2

Connector

3

Lower body

4

Nipple

Material

Brass

BS 2872 CZ 122

Brass

BS 2874 CZ 121

Brass

BS 2874 CZ 121

Brass

BS 2874 CZ 121

Brass

BS 2874 CZ 121

Loctite retainer 620 - Green

5

4

3

6

5

Valve coupling nut

6

Body sealant

7

Push rod

Brass

BS 2874 CZ 121

8

Plunger

Brass

BS 2874 CZ 121

Dimensions/weights (approximate) in mm and kg

8

A

108

B

Weight

60

0.72

1

7

2

A

B
