Control valves

Self-acting controls

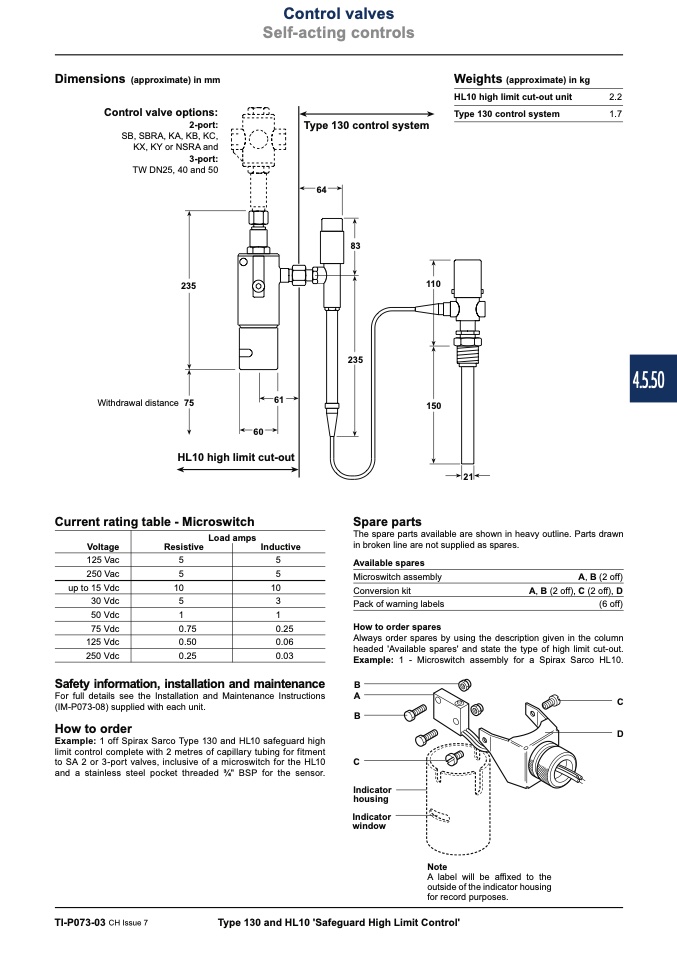

Dimensions (approximate) in mm

Control valve options:

2-port:

SB, SBRA, KA, KB, KC,

KX, KY or NSRA and

3-port:

TW DN25, 40 and 50

235

Type 130 control system

Weights (approximate) in kg

HL10 high limit cut-out unit

2.2

Type 130 control system

1.7

64

83

235

110

150

7 5

Withdrawal distance

60

61

HL10 high limit cut-out

Current rating table - Microswitch

21

Voltage

125 Vac

250 Vac

up to 15 Vdc

30 Vdc

50 Vdc

75 Vdc

125 Vdc

250 Vdc

Resistive

Load amps

Inductive

5

5

10

3

1

0.25

0.06

0.03

The spare parts available are shown in heavy outline. Parts drawn

in broken line are not supplied as spares.

Spare parts

5

5

10

5

1

0.75

0.50

0.25

Available spares

Microswitch assembly

Conversion kit

Pack of warning labels

How to order spares

A, B (2 off)

A, B (2 off), C (2 off), D

(6 off)

Always order spares by using the description given in the column

headed 'Available spares' and state the type of high limit cut-out.

Example: 1 - Microswitch assembly for a Spirax Sarco HL10.

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P073-08) supplied with each unit.

How to order

Example: 1 off Spirax Sarco Type 130 and HL10 safeguard high

limit control complete with 2 metres of capillary tubing for fitment

to SA 2 or 3-port valves, inclusive of a microswitch for the HL10

and a stainless steel pocket threaded 3⁄4" BSP for the sensor.

B

A

B

C

Indicator

housing

Indicator

window

C

D

Note

A label will be affixed to the

outside of the indicator housing

for record purposes.

TI-P073-03 CH Issue 7

Type 130 and HL10 'Safeguard High Limit Control'

4.5.50
