Control valves
Positioners and controllers
Technical data
Controller
Enclosure rating
Scale length
Pointers
Gauges
Control mode
Output signal
Control action
Set point adjustment
Accuracy
Sensitivity
Repeatability
Linearity
Air supply
Air consumption
Air connections
Ambient temperature limits
Mounting
Weight
Dimensions (mm)
Controller
Sensor
3⁄4" BSP
E
No groove on
SY sterile bulb
G
F
IP54 (Standard)
IP55 (Optional)
100mm
Measured value
Set point
- black
- red
3⁄4" BSP
Connector
Output signal pressure (bar/psi g)
Proportional (5-200% of scale range)
Integral (0.1 to 20 repeats per minute)
Pocket (optional replacing standard connector)
L
0.2 - 1 bar
Direct or reverse action -
Field reversable
Manual adjustment
1% of range span
0.2% of range span
0.5% of range span
0.5% of range span
1.4 bar
0.2 Nm3/h (average)
1⁄4" BSP
-15°C to 65°C
Wall or flush panel mounted
3.5 kg
1⁄2" BSP
3⁄4" BSP
Controller
A
Panel cut-out
K
A
B
C
D
202
144
136
Temperature sensing bulb
E
F
G
17
J
B
C
D
200
120
Panel mounting cut-out
H
J
138
188
K
L
16
210
13
H

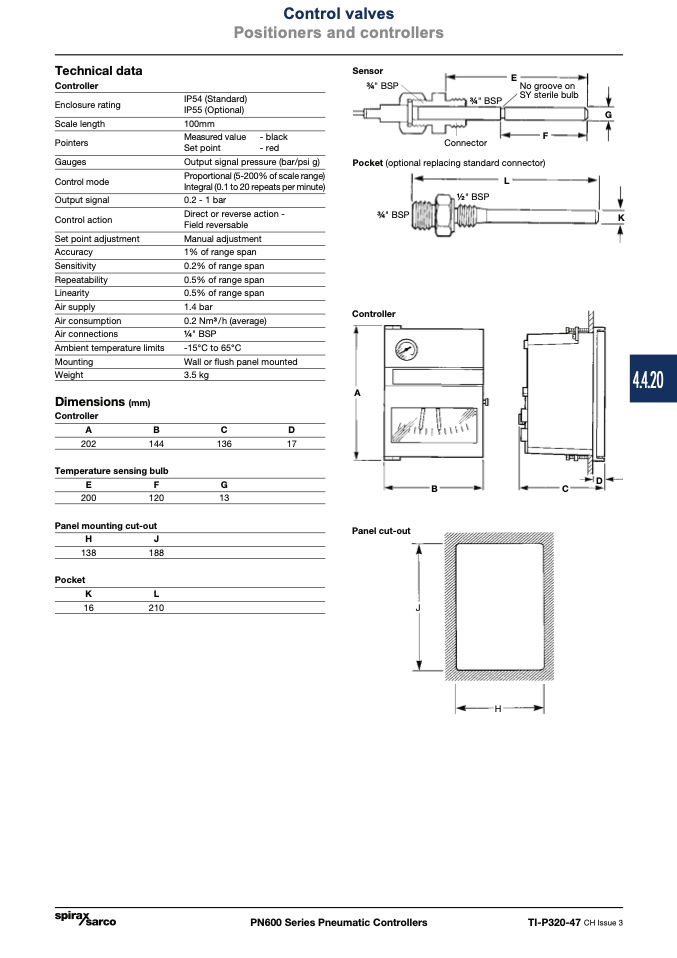

PN600 Series Pneumatic Controllers
TI-P320-47 CH Issue 3
4.4.20
