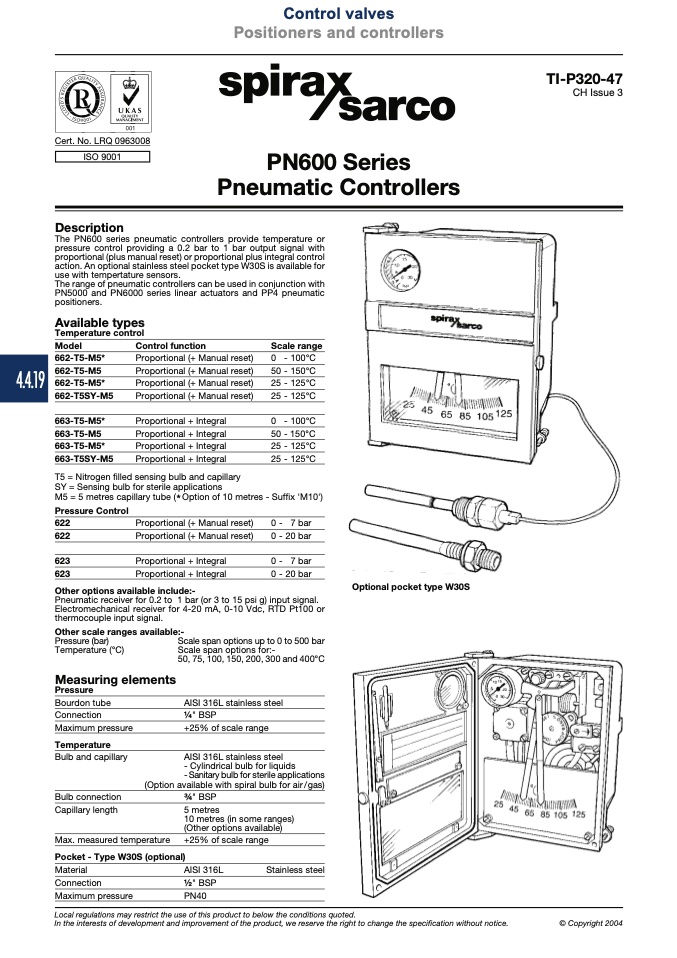

Description
The PN600 series pneumatic controllers provide temperature or
pressure control providing a 0.2 bar to 1 bar output signal with
proportional (plus manual reset) or proportional plus integral control
action. An optional stainless steel pocket type W30S is available for
use with tempertature sensors.
The range of pneumatic controllers can be used in conjunction with
PN5000 and PN6000 series linear actuators and PP4 pneumatic
positioners.
Available types
Temperature control
PN600 Series
Pneumatic Controllers
Model
662-T5-M5*
662-T5-M5
662-T5-M5*
662-T5SY-M5
663-T5-M5*
663-T5-M5
663-T5-M5*
663-T5SY-M5
Control function
Proportional (+ Manual reset)
Proportional (+ Manual reset)
Proportional (+ Manual reset)
Proportional (+ Manual reset)
Proportional + Integral
Proportional + Integral
Proportional + Integral
Proportional + Integral
Scale range
0 - 100°C
50 - 150°C
25 - 125°C
25 - 125°C
0 - 100°C
50 - 150°C
25 - 125°C
25 - 125°C
T5 = Nitrogen filled sensing bulb and capillary
SY = Sensing bulb for sterile applications
M5 = 5 metres capillary tube (*Option of 10 metres - Suffix 'M10')
Pressure Control
622
Proportional (+ Manual reset)
622
Proportional (+ Manual reset)
623
Proportional + Integral
623
Proportional + Integral
Other options available include:-
0 - 7 bar
0 - 20 bar
0 - 7 bar
0 - 20 bar
Pneumatic receiver for 0.2 to 1 bar (or 3 to 15 psi g) input signal.
Electromechanical receiver for 4-20 mA, 0-10 Vdc, RTD Pt100 or
thermocouple input signal.
Other scale ranges available:-
Pressure (bar)
Temperature (°C)
Measuring elements
Pressure
Optional pocket type W30S
Bourdon tube
Connection
Maximum pressure
Temperature
Bulb and capillary
Bulb connection
Capillary length
Scale span options up to 0 to 500 bar
Scale span options for:-
50, 75, 100, 150, 200, 300 and 400°C
AISI 316L stainless steel
1⁄4" BSP
+25% of scale range
AISI 316L stainless steel
- Cylindrical bulb for liquids
- Sanitary bulb for sterile applications
(Option available with spiral bulb for air/gas)
3⁄4" BSP
5 metres
10 metres (in some ranges)
(Other options available)
+25% of scale range
Max. measured temperature
Pocket - Type W30S (optional)
Material
Connection
Maximum pressure
AISI 316L
Stainless steel
1⁄2" BSP
PN40
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
