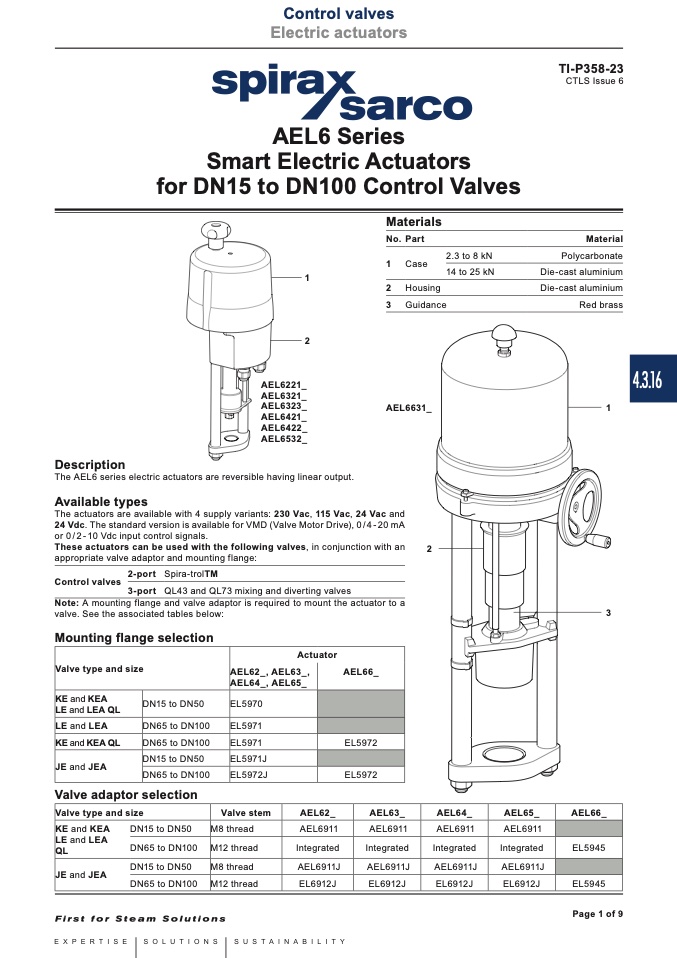

Control valves

Local regulations may restrict the use of this product to below the conditions quoted.

Electric actuators

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-P358-23

CTLS Issue 6

AEL6 Series

Smart Electric Actuators

for DN15 to DN100 Control Valves

Materials

No. Part

1 Case

2 Housing

3 Guidance

AEL6631_

Material

Polycarbonate

Die-cast aluminium

Die-cast aluminium

Red brass

1

1

2

AEL6221_

AEL6321_

AEL6323_

AEL6421_

AEL6422_

AEL6532_

2.3 to 8 kN

14 to 25 kN

Description

The AEL6 series electric actuators are reversible having linear output.

Available types

The actuators are available with 4 supply variants: 230 Vac, 115 Vac, 24 Vac and

24 Vdc. The standard version is available for VMD (Valve Motor Drive), 0 / 4 - 20 mA

or 0 / 2 - 10 Vdc input control signals.

These actuators can be used with the following valves, in conjunction with an

appropriate valve adaptor and mounting flange:

Control valves

2-port Spira-trolTM

3-port QL43 and QL73 mixing and diverting valves

Note: A mounting flange and valve adaptor is required to mount the actuator to a

valve. See the associated tables below:

Mounting flange selection

Valve adaptor selection

2

3

Valve type and size

Actuator

AEL62_, AEL63_,

AEL66_

AEL64_, AEL65_

KE and KEA

LE and LEA QL

DN15 to DN50

EL5970

LE and LEA

DN65 to DN100

EL5971

KE and KEA QL

DN65 to DN100

EL5971 EL5972

JE and JEA

DN15 to DN50 EL5971J

DN65 to DN100

EL5972J EL5972

Valve type and size

Valve stem

AEL62_

AEL63_ AEL64_ AEL65_ AEL66_

KE and KEA

DN15 to DN50

LE and LEA

QL

DN65 to DN100

M8 thread

AEL6911

AEL6911 AEL6911 AEL6911

M12 thread

Integrated Integrated Integrated Integrated EL5945

JE and JEA

DN15 to DN50

DN65 to DN100

M8 thread

AEL6911J

AEL6911J AEL6911J AEL6911J

M12 thread

EL6912J EL6912J EL6912J EL6912J EL5945

Page 1 of 9

4.3.16
