Control valves

Electric actuators

4.3.13

AEL5951 auxiliary switches

X6

1

2

3

4

5

6

AEL5952 feedback potentiometer and

AEL5953 1st output from tandem potentiometer

X4

16

14

15

X11

1

2

3

Brown Green White

Extend position

Retract position

AEL5953

2nd output from tandem potentiometer

X9

1

2

3

X0

1

2

3

Brown Green White

Extend

position

Retract

position

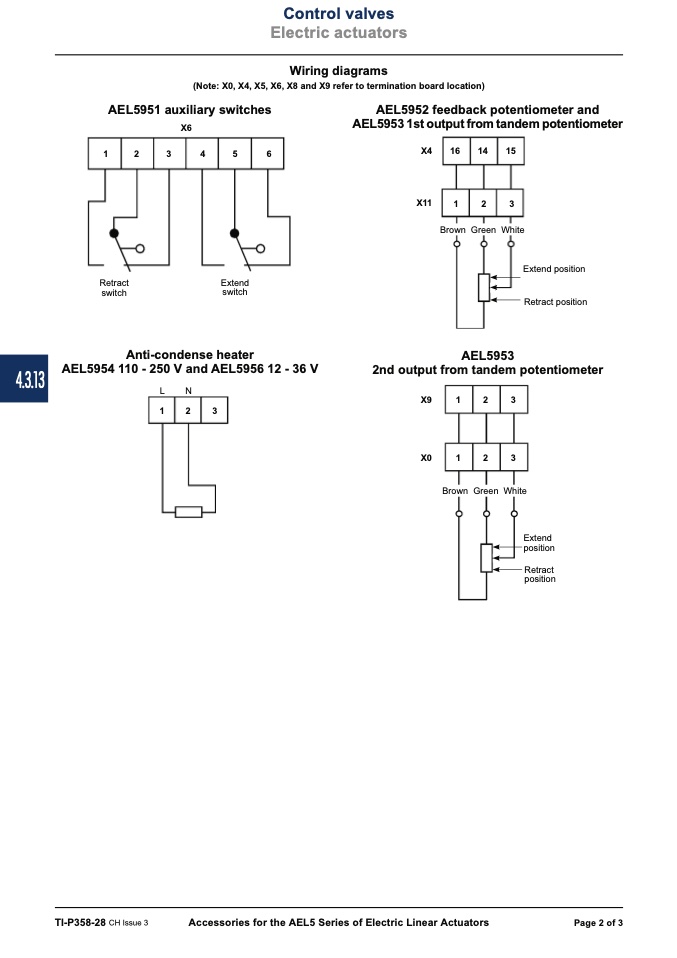

Wiring diagrams

(Note: X0, X4, X5, X6, X8 and X9 refer to termination board location)

Retract

switch

Extend

switch

Anti-condense heater

AEL5954 110 - 250 V and AEL5956 12 - 36 V

L

N

1

2

3
